laser diode driver with two channel temperature controller
operation in CW or pulsed (optional) mode
slow and soft start, typically within 1ms
applying an external electric potential allows to adjust the diode current, and temperatures of two channels
protection against excessive current, heat, reverse polarity
feedback photodiode and thermo-resistor circuits

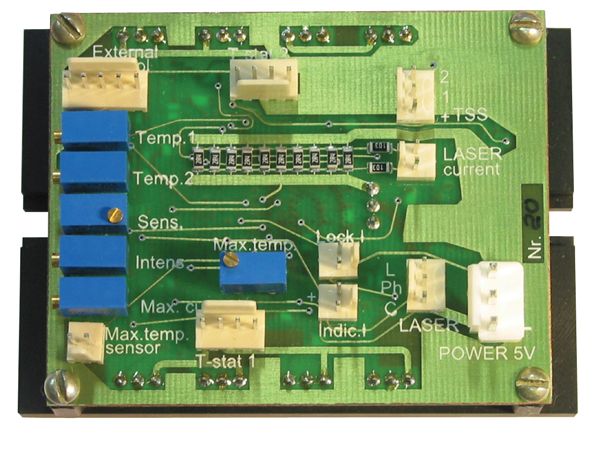

The STAD-01 driver is a laser diode driver with a two channel temperature controller. Designed for safe operation of laser diodes in CW or pulsed mode, it also allows control of the temperature with two independent Peltier TE coolers. Highly-efficient design limits power dissipation and simplifies heat-sinking requirements. STAD-01 driver requires a 5V stabilized power supply (available as option).
