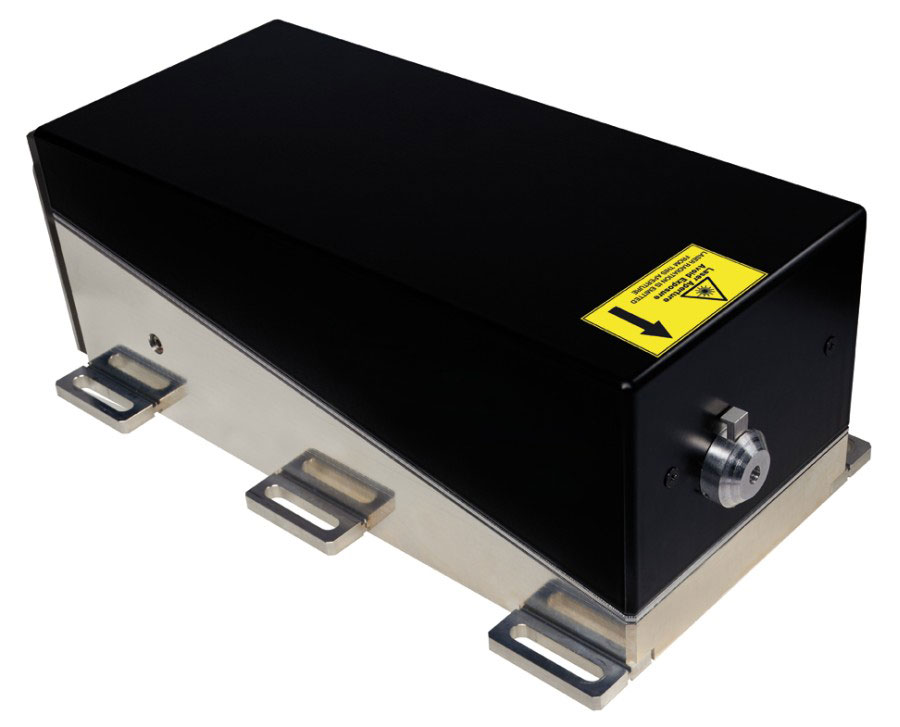

Concerto 442 - Diode-Pumped Solid-State CW Blue Micro Laser
Diode-Pumped Solid-State CW Blue Micro Laser
Zoom in
Printable version
Datasheet
442 nm output wavelength

Highest Efficiency: ≥ 5 % (output-/pump power)

Low noise: < 0.3 % rms

High beam quality (M2<1.1)

CW laser operation

Single Frequency: intrinsic feature of optical layout, no mode hops

Scalable Design

Cost effective



Concerto (442 nm) series DPSS CW Lasers serve as a true replacement for He-Cd lasers, but offer easy maintenance and excellent beam pointing stability. Naturally the laser is low noise, conductively cooled and inherently produces single frequency performance (<1MHz line width)..

Key applications:

The wide output power range from 25 mW to 100 mW makes Concerto very popular for holography, thin film analysis, spectroscopy, flow visualization and optical data storage applications.

Model Concerto-442-25 / -50 / -75 / -100 / -150
Output wavelength 442 nm ±0.5 nm
Rated output power (CW) 25, 50, 75, 100, 150 mW
Output beam diameter 1.2 mm (+/-0.2) @ 10 mm 1/e2
Transverse mode structure TEM00, M2 <1.1
Longitudinal mode structure SLM (Single frequency)
Divergence <1 mrad 1/2 angle
Beam pointing stability ≤ 10 µrad/°C
Polarization Vertical
Polarizarion ratio ≥ 100:1
Output power noise (p-p) ≤ 3% (10 Hz - 2 MHz)
Output power noise (rms) ≤ 0.5% (10 Hz - 2 MHz)
Output power stability ≤ 2% (4 hours)
Thermal management TEC conductively cooled. Recommend mounting on metal heat sink plate min
Operating temperatures (base plate) 15-35 °C
Laser Head Dimensions (LxWxH) 400 x 150 x 125 mm
Controller Dimensions (LxWxH) 175 x 104 x 45 mm
Power adapter Standard AC/DC converter, 12VDC, 140W max with Mini-DIN 4 power connector

OEM Manufacturing services. Standa provides contract manufacturing services for application - specific Lasers. Please call your local Standa distributors or Standa office for more information.
