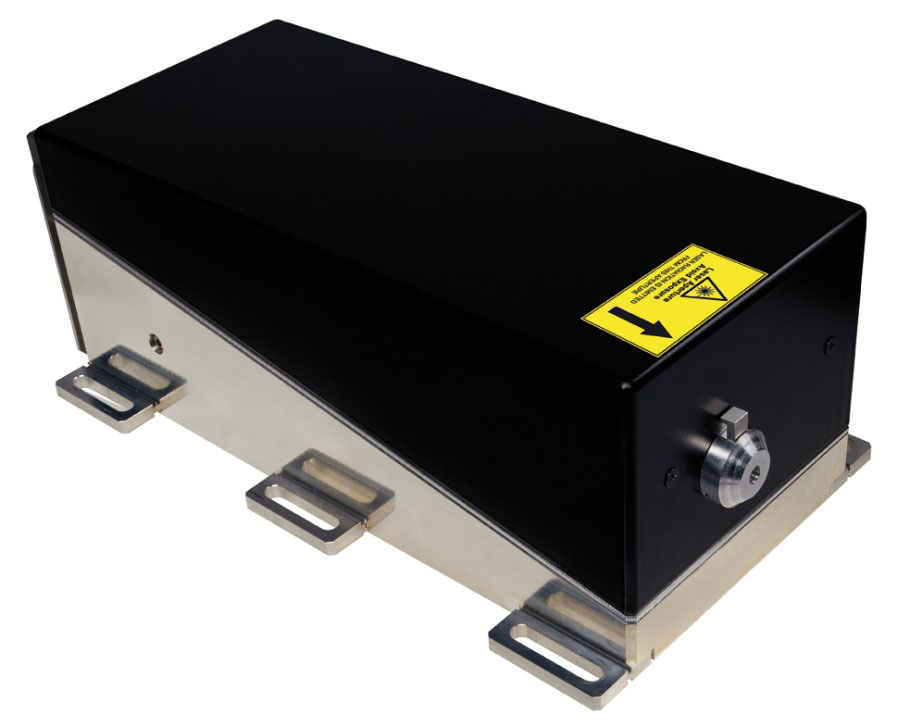

Diffraction limited TEM00 optical performance combined with extremely low optical noise and good beam pointing stability at 488 nm are the main advantages of Blue-Note series. Built on the same platform as its colleague Concerto, Blue-Note outputs 25, 50 and 100 mW giving low noise options for more power requiring applications such as wide field confocal microscopy and large area imaging.
Key applications:
In principle 488 nm is the main wavelength for bio-fluorescence applications, to name few: flow cytometry, confocal microscopy and high throughput screening.
Model |
BlueNote-488 |
Output wavelength |
488 nm ±0.5 nm |
Rated output power (CW) |
100 mW |
Output beam diameter |
0.7 mm (+/-0.2) |
Transverse mode structure |
TEM00, M2 <1.1 |
Longitudinal mode structure |
SLM (Single frequency) |
Divergence |
Diffraction limited |
Beam pointing stability |
≤ 10 µrad/°C |
Spectral linewidth |
< 1 MHz |
Coherence length |
> 100 m |
Polarization |
Vertical |
Polarizarion ratio |
≥ 100:1 |
Output power noise (p-p) |
≤ 2% (10 Hz - 2 MHz) |
Output power noise (rms) |
≤ 0.3% (10 Hz - 2 MHz) |
Output power stability |
≤ 2% (4 hours) |
Thermal management |
TEC conductively cooled. Recommend mounting on metal heat sink plate min |
Operating temperatures |
15-35 °C |
Laser Head Dimensions (LxWxH) |
252.5 x 109 x 98 mm |
Controller Dimensions (LxWxH) |
164 x 109 x 54 mm |
Power adapter |
Standard AC/DC converter, 12VDC, 140W max with Mini-DIN 4 power connector |
Download PDF for more information.
