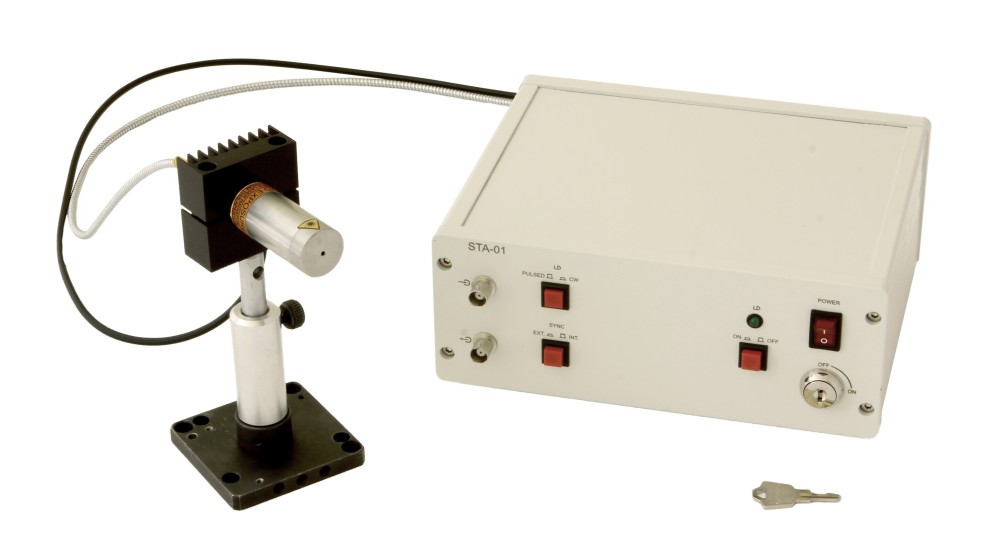

STA-01-YLF - Passive Q-Switched Laser


		Zoom in

		Printable version

		View drawings


		single longitudinal mode
		sub-nanosecond pulses (0.5 ns)
		TEM₀₀ and SLM
		high peak power (>1MW)
		rugged and compact design
		reliable and robust permanently-aligned laser cavity
		external TTL triggering
		laser controller with USB interface
		OEM version available

The Passive Q-Switched Laser STA-01-YLF is a sub-nanosecond passively Q-switched diode-pumped Nd:YLFmicrolaser. Depending on model the laser can be operated at wavelength of 1047 nm or 1053 nm. The laser delivers up to 1 mJ pulses with pulse duration as low as 350 ps and peak power exceeding 1MW in a TEM₀₀ beam. Built-in frequency generator allows the STA-01-8-1047 to operate at repetition rates from single shot up to 500Hz, external TTL triggering is also standard option for this model. Laser output can be doubled (523nm) and tripled (349 nm) upon request. customization of STA-01-YLF series lasers is possible and welcome.

Applications:
• Materials processing • Semiconductor inspection • LIBS	• LIPS • Marking • Nonlinear optics	• Biophotonics • Micromachining • Photoacoustic spectroscopy

Model	STA-01- -YLF-01	STA-01- -YLF-02	STA-01- -YLF-03	STA-01- -YLF-04	STA-01SH- -YLF-1	STA-01SH- -YLF-2	STA-01SH- -YLF-3	STA-01SH- -YLF-4	STA-01TH- -YLF-1	STA-01TH- -YLF-2	STA-01TH- -YLF-3	STA-01TH- -YLF-4
Wavelength, nm	1047	1053			524	527			349	351
Pulse energy, µJ	600	400	1000	600	300	200	500	300	150	100	250	150
Average output power (max), mW	60	40	100	300	30	20	50	150	15	10	25	75
Pulse width (FWHM), ps	500	350	650	600	500	350	650	600	500	350	650	600
Repetition rate (max), Hz	100	100	100	500	100	100	100	500	100	100	100	500
Pulse to pulse energy stability (RMS), %	<0.5
Beam profile	TEM₀₀, M2~1.25
Beam waist diameter inside the laser head 1/e2, µm	55 - 450
Pulse spectral structure	SLM
Spectral line width (FWHM), pm	<3.5
Polarization ratio	>100:1
Interfaces	USB, External trigger (TTL rising edge)1Hz...max repetition rate
External power supply voltage, V AC	100-240
Operating temperature, °C	22±1¹, non-condensing
Laser head dimensions, mm	Ø25 x 74		58 x 70 x 42.5		Ø25 x 74		58 x 70 x 42.5		Ø25 x 74		58 x 70 x 42.5
Controller dimensions, mm	223 (W) x 94 (H) x 197 (L)
