STA-01CW - CW Microchip Laser
CW Microchip Laser
Zoom in
Printable version
TEM00



The STA-01CW Microchip Laser is a highly reliable CW diode-pumped solid-state laser operating at the fundamental 1064 nm and second harmonic 532 nm wavelength. The laser head delivers 0-500 mW of stable output power in a TEM00 beam. Laser resonators does not contain moving parts; optimized laser diode (LD) beam shaping optics allows easy and reliable assembling. Standard laser system consists of a power supply unit and a laser head. Power supply unit includes LD and TEC drivers, USB interface for ease of integration and remote control. JLV-SOFT9, universal laser control software with intuitive GIU, allows detailed setting and monitoring of the laser parameters. The STA-01CW is equiped with a Remote Interlock connector located at the back panel. Each unit is supplied with a shorting device installed in the interlock connector.

Model STA-01CW STA-01SHCW
Wavelength, nm 1064 532
Linewidth, nm <0.5
Output power, mW 0-500 0-300
Power stability, 8 hours +/-2 °C <5%
Warm up time, min <10
Spatial mode TEM00
M2 factor <1.2
Polarization ratio >100:1
External power supply voltage, V AC 100-240
Operating temperature, °C 15-40
Laser head dimensions:
Diameter, mm 25
Length, mm 44 74
Warranty 12 months or 5000 hours whichever occurs first

OEM Manufacturing services. Standa provides contract manufacturing services for application-specific Lasers. Please call your local Standa distributors or Standa office for more information.

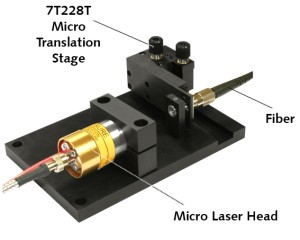

Example of Fiber coupling assembly



Ordering Information
Model
STA-01CW
STA-01SHCW
