8DCMC3 (CCA)  8DCMC3-B2-2
SPECIFICATIONS
Electrical
- Targeted for brushed DC motors with current ratings of 0.05A to 3A and integrated incremental encoders
- Power supply voltage is 12V nominal
System Expansion
-Available only for PCB version – refer to “Ordering of 8DCMC3 series controllers PCB board” for additional information
Motion
- Closed loop control system with programmable parameters: speed, acceleration, direction, PID coefficients
- Programmable actions sequences
Control
- Control via RS232 interface
- Capable of connecting two programmable limit switches for every axis
Programming
- Serial communications command system for Windows, Linux and most other operating systems. The host is “master” and controllers are addressable “slaves”
- Simple test programs include
Mechanical
- RoHS compliant
- Operating temperature range: 0 to 70°C
- Box size for 1-axis controller : 90 x 110 x 70 mm (B1)
- Box size for 2 and more axis controller : 180 x 160 x 90 mm (B2)

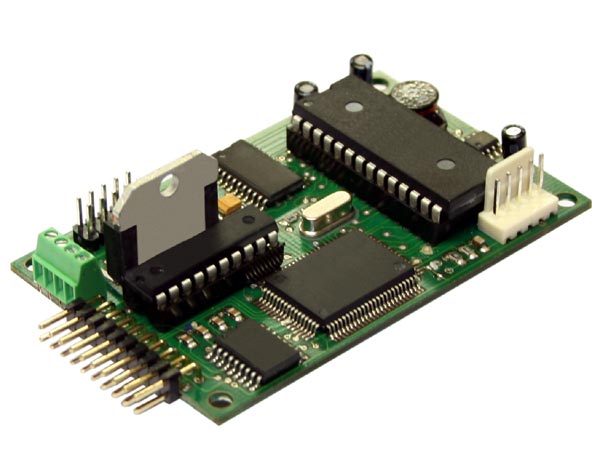

Ordering of 8DCMC3 series circuit card assemblies (CCA)
It is possible to order circuit card assemblies of the 8DCMC3 series controller in order to build custom systems. Multiple controllers can be serially connected to a single RS232 COM port for multi-axis systems. Warranty and support options for the CCA version may vary.
A 12V – 36V, 1.5A – 3.6 A power supply is required to operate the controller. You can use your own power supply. We recommend using model “PS12-1.5-4” (12V; 1.5A)
Cable to motor not included as the Standa actuators for DC motors already have an integrated cable.
Ordering Information
8DCMC3 controllers family is upgraded to new generation controllers family - 8SMC5-USB , which is more advanced in every way
Technical support of 8DCMC3 controllers users is maintained.
|
