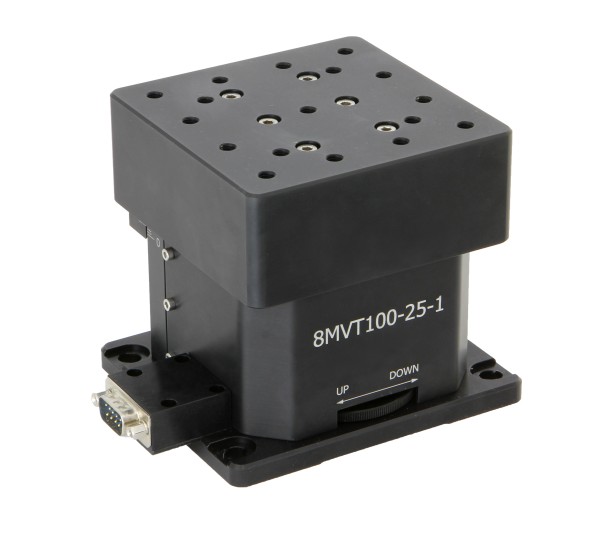

8MVT100-25-1 - Motorized Vertical Stages
Motorized Vertical Stages
Zoom in
Printable version
View drawings
Download 3D
High precision

High speed (up to 20 mm/sec)

Loads up to 8 kg

Compact design

Direct drive actuator

Perfectly stacks with 8MR190, 8MR191-2 rotators and 8MT167 translators

Fits metric and imperial mounting hole patterns




Specifications
Travel range 25 + 1 mm
Resolution in full step 5 μm
Resolution in 1/8 step 0.625 μm
Lead screw pitch 1 mm
Maximum speed 20 mm/sec
Load capacity 8 kg
Unidirectional repeatability 1 μm
Bi-directional repeatability 2 μm
Motor 2 phase stepper actuator
Weight 2.2 kg
Optocoupler end limit switches2
Switch polaritypushed is open
Recommended controllers8SMC4-USB
Ordering Information
Model
8MVT100-25-1
