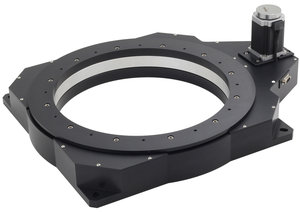

8MRB450-350-60 - Large Aperture Rotary Table (Motorized)
Large Aperture Rotary Table (Motorized)
Zoom in
Printable version
View drawings
Download 3D
Precision Motorized Continuous Rotation Stage

350 mm clear aperture

For weights up to 150 kg.

Low-profile

Speed up to 53 RPM

Vacuum compatible model (10-3 Torr) available by request


Standa introduces extra large aperture motorized rotation stage 8MRB450-350-60 which provides precision angular positioning accuracy combined with high load capacity. Rotation stage body is constructed of anodized aluminum and has single monolithic design; rotation accuracy ensured by the precision bearings and belt drive system - all that provide improved stiffness without affecting a dynamic performance. The stage is driven by the stepper motor (or servo on request) with programmable micro-stepping resolutions to provide sub-arcminute angular positioning.
Vertical Mounting Example of Rotary Table with Large Aperture
Zoom In
Vertically Mounted Motorized Rotation Stage with Large Aperture  (350 mm) Platform
Rear View


Specifications
Belt drive1:12,5
Clear aperture350 mm (13,78")
Rotation range360° continuous
Resolution
in full step8,64’
in 1/8 step64,8”
Repeatability
uni-directional0° 01' 30''
bi- directional 0° 02' 00''
Accuracy 0° 04' 00''
Wobble 0° 00' 50''
Maximum speed53 turn/min
Load capacity
axial150 kg
radial150 kg
torque230 Nm
Limit switch (home)hall sensors
Motor connectorDB9(M)
Stepper motor6018
Recommended
controllers

8SMC5-USB
Weight17,6 kg
Optocoupler home
reference switch

1
Switch polaritypushed is closed
Default Cable length1,6 m
Ordering Information
Model
8MRB450-350-60 Motorized Rotation Stage
(motor on top)
8MRB450-350-60D Motorized Rotation Stage
(motor from the bottom)
8MRB450-350-60-MEn2 Motorized Rotation Stage
with Encoder (motor on top)
8MRB450-350-60D-MEn2 Motorized Rotation Stage
with Encoder (motor from the bottom)
2AB450-350 Right-Angle Bracket
