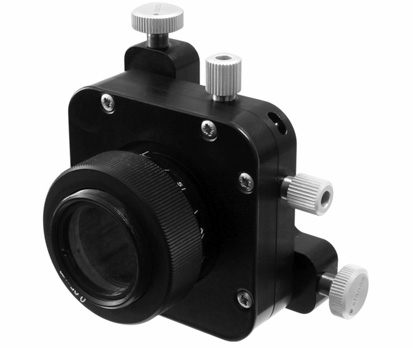

Five-Axis Optical Mounts consist of:
- Side regulation two-axis kinematic mirror mount with two screws (thread pitch 250 µm (100TPI))
- Two-axis translation stage with 2mm travel range driven by two screws (thread pitch 250 µm (100TPI))
- Zoom which provides 10mm travel range
Five-Axis Optical Mounts hold 1-inch optics. In addition, the adapters may be purchased to mount optics of different diameters. Five-Axis Optical Mounts have M6 holes on the bottom to accommodate different mounting systems directly or through thread adapters.
Vacuum compatible five-axis optical mounts could be provided on request.
