5PM131 - Prism/Optics Mount
Prism/Optics Mount
Zoom in
Printable version
View drawings
Handy two orthogonal angular adjustments
9° range
Sensitivity 3 arcsec
M6×0.25 adjustment screws provide precise kinematic control
Made of black anodized aluminium
Weight 0.1kg



Budget Kinematic Optical Mounts are designed for angular alignment of optical elements, in a range of 9° in both orthogonal axes. The tilting element is always true-kinematic registered. The Mounts are produced of black anodized aluminium. Custom colors are available on request.

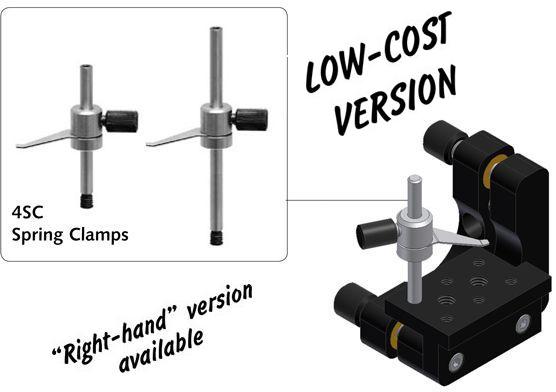

Prism Mount 5PM131 provides basic mounting for prisms, beamsplitter, cubes and etc. Spring clamps 4SC series should be ordered separately. This mount is metric compatible. 5PM131 Mounts are equipped with fine pitch M6x0.25 mm adjustment screws, which rest upon hardened steel seats to provide reliable and repeatable adjustment.

Kinematic Optical Mount is produced in 2 modifications: 5PM131-2 with 2 fine screws and 5PM131-3 with 3 fine screws.




Related products

Prisms Beam Displacers Non Polarizing Beamsplitter Cubes


Specifications
Travel range
Sensitivity3 arcsec
Fine screw threadM6x0.25
Weight 0.1kg
Ordering Information
Model Information Price Availability
5PM131-2 2 fine screws,
mounting through holes for M4(8-32) screws
54 € today
5PM131-3 3 fine screws,
mounting through holes for M4(8-32) screws
66 € today
5PM131M-2 2 fine screws,
mounting through holes for M4(8-32) screws, right hand version
54 € today
5PM131M-3 3 fine screws,
mounting through holes for M4(8-32) screws, right hand version
66 € today
