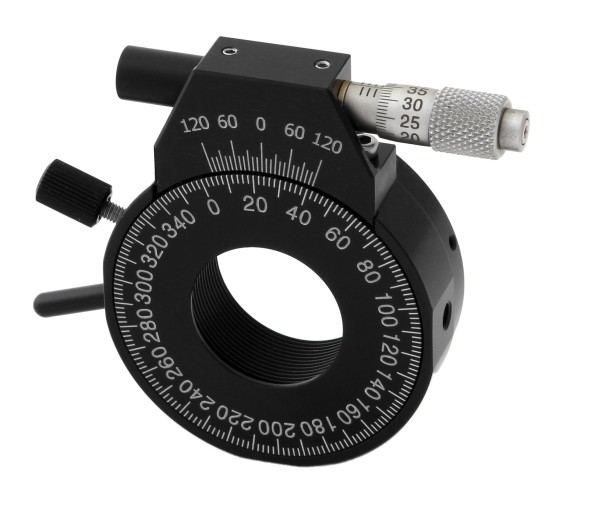

5PPH50-1 - High Precision Rotation Mount
High Precision Rotation Mount
Zoom in
Printable version
View drawings
Download 3D
For Ø1” optics
One retaining ring included
Accepts optics up to 13 mm thick
Continuous 360° rotation with 2° scale gradation
Lockable
±5° of fine micrometer adjustment when locked
Sensitivity 1 arcmin
Vernier scale provides 10 arcmin resolution
Micrometer screw 9S35 installed
Roller bearings design
M6 threaded holes for mounting on posts or bases
Material: black anodized aluminum



High Precision Rotation Mount 5PPH50-1 is ideal for manual rotation positioning sensitive optics such as polarizers or waveplates. The most common requirement for polarizers is to rotate them about their optical axis. Optics are placed inside central aperture, where it is securely held in place by a threaded retaining ring. The position is indicated on 360° angular scale with gradation of 2°. Once mount is fixed in desired position it can be fine ajusted within 5° range with 1 arcmin accuracy. Vernier scale above optical mount provides effective reference tool for angular positioning. Micrometer screw 9S35 is used, can be optionally replaced with 9SH147 fine hex adjustment screw. The base and side of the polarizer holder has M6 threaded holes for mounting on posts or bases. Surface around mounting holes is flattened so the mount stays rigid once fixed on a mounting post or any other flat base. 5PPH50-1 has a removable rod to rotate the platform by any of its 4 holes.

This mount is also compatible with Ø25.0 mm optics.




Related optics

Crystalline quartz waveplates Radial Polarization Converter Rochon Polarizing Prisms


Specifications
Continuous rotation360°
Fine rotation±5°
Graduation on main dial
Sensitivity1 arcmin
Optics diameter1"
Optics thickness (max)13 mm
Body materialAluminium
FinishBlack anodized
Ordering Information
Model Price
5PPH50-1 215 €
5PPH50-1-9SH147 185 €
