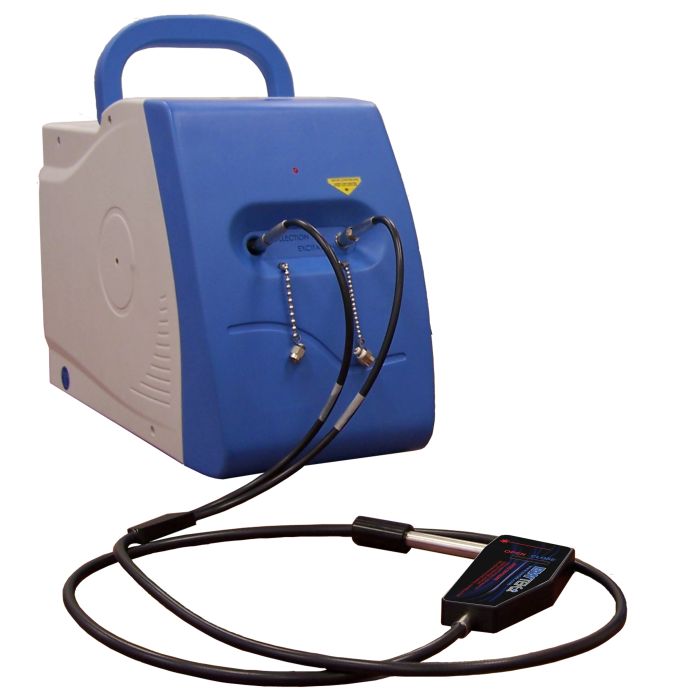

The i-Raman® is equipped with patented CleanLaze® technology for exceptional laser stabilization and narrow linewidth. Other features include a spectral resolution as fine as 3cm-1, wide Raman shift coverage up to 4000cm-1, and a TE cooled 2048 pixel CCD array. With a convenient fiber optic interface, it can collect data to within 65cm-1 of the Rayleigh Line. It is unique for its high resolution combined with field-portability, with performance comparable to large bench-top Raman systems and weighing less than 3.5 kg. The system’s small footprint, lightweight design, and low power consumption provides research grade Raman capabilities anywhere!
The i-Raman offers 532nm, 785nm, and 830nm excitation wavelength options. All i-Raman systems feature deep TE Cooling, allowing the maximum effective integration to be 4 minutes. This makes the i-Raman ideal for demanding applications involving low concentrations and weak Raman scatterers.
Applications:
• Bioscience and Medical Diagnosis
• Polymers and Chemical Processes
• Semiconductor & Solar Industry
• Food & Agriculture Industry
• Geology and Mineralogy
• Pharmaceutical Industry
• Environmental Science
• Raman Microscopy
• Forensic Analysis
• Gemology
| Lasers |
| 532nm Excitation |
< 50 mW |
| 785 Excitation |
< 300 mW |
| 830nm Excitation |
< 300 mW |
| Laser Power Control |
532nm†, 785nm, 830nm |
| Spectrometer |
Range |
Resolution* |
| BW-RAM-REG-532S |
175cm-1 - 4000cm-1 |
~ 4.0cm-1 @ 614nm |
| BW-RAM-REG-532H |
175cm-1 - 3300cm-1 |
~ 3.0cm-1 @ 614nm |
| BW-RAM-REG-785S |
175cm-1 - 3200cm-1 |
~ 4.5cm-1 @ 912nm |
| BW-RAM-REG-785H |
175cm-1 - 2700cm-1 |
~ 3.5cm-1 @ 912nm |
| BW-RAM-REG-830 |
200cm-1- 2300cm-1 |
~ 4.0cm-1 @ 912nm |
| Electronics |
| Computer Interface |
USB 2.0 / 1.1 |
| Trigger Mode |
5V TTL |
| Power Options |
| DC (Standard) |
5V DC @ 8 Amps |
| AC (Optional) |
100 - 240VAC, 50 - 60Hz |
| Battery |
Optional w/ DC only |
| Detector |
| Detector Type |
TE Cooled Linear Array |
| Pixel Number |
2048 |
| Pixel Size |
14µm x 200µm |
| TE Cooling Temperature |
10°C |
| Dynamic Range |
300:1 (typical) |
| Digitization Resolution |
16-bit or 65,535:1 |
| Readout Speed |
500KHz |
| Integration Time |
5ms - 65,535ms |
| Physical |
| Dimensions |
6.7 x 13.4 x 9.2in (17 x 34 x 23.4cm) |
| Weight |
3 kg |
| Operating Temperature |
10°C - 35°C |
| Storage Temperature |
-10°C - 60°C |
| Humidity |
10% - 85% | *Typical Resolution Measured Using Pen Lamp Emission, †Center wavelength and linewidth not guaranteed
Package includes:
Chosen model of i-Raman Spectrometer
One lab grade fiber optic Raman probe
One pair laser safety goggles
Windows based software BWSpec
|
