7TF2 - Fiber Coupling Stage

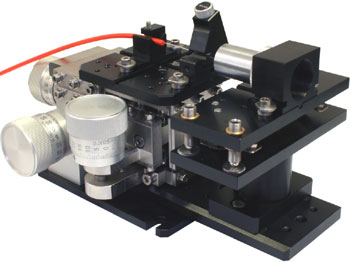

Fiber Coupling Stage
Zoom in
Printable version
View drawings
Download 3D
Fiber coupling stage of flexure design
Rotating platform on the top (coarse 360°)
Compact block design
Long-term stability
Smooth motion
Motorized version of the stage



Flexure stages 7TF2 are ideal for high precision device manipulation. This stage suits almost any micro positioning applications range, for example, from fiber launch systems for single-mode, multimode and polarization maintaining fibers as well as waveguide alignment, through to the manipulation of microstructures in bioscience. Fiber Coupling Stage of flexure compact block design with high-resolution micrometers ensures long-termed stability and good stiffness together with smooth motion without the severe limitations of sticking and friction. Fiber Coupling Flexure stages have a combination of overall size, travel, resolution, and low cost that makes them unique decision to meet the stringent requirements of photonics laboratory applications.
Vacuum compatible Fiber Coupling Stages versions are delivered on request. Also as an option fiber coupling stage could be provided with differential screws.

Standa offers variety of fiber launch accessories for fiber coupling stages



Specifications
Travel range in each XYZ direction2mm
Sensitivity0,2 µm
Reading accuracy1,25 µm (1/2 division)
Cross-Talk20 µm/mm
Mechanical stabilityflexure design with
Stainless Steel Spring
Load capacity1,5 kg
Weight1,6 kg
Ordering Information
Model Price Availability
7TF2 660.00 € request
7TF2M request
drawings
660.00 € request

Both models have same specifications. The only
difference is that 7TF2M is a "mirror" version of the
7TF2 (right-handed or left-handed versions).
