7FA - Fiber Coupling Accessories

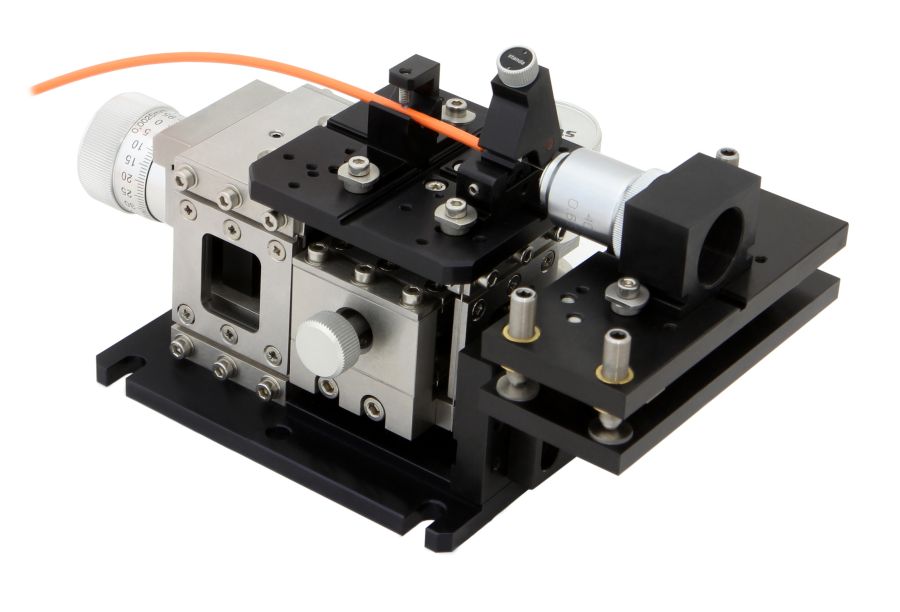

Fiber Coupling Accessories
Zoom in
Printable version
View drawings
Download 3D



* Included with accessories that require 3WFA-01 for mounting.

Adjustable Force Fiber Clamp - 7FA1

V-Grooved insert has 5 different V-Grooves and one flat surface
V-Grooves are suitable for fibers or cylindrical optical elements in the range of 125 µm to 2 mm in diameter
Adjustable force fiber clamping arm, 20 to 250g
Knob on the top is for adjusting the clamping force

7FA1 is fast release Adjustable Force Fiber Clamp allows fixing fibers of different diameters in V-grooves. The top knob is used to adjust the clamping forces that the clamping arm exerts on the fiber, this feature is useful when working with specialty fibers such as highly birefringent fibers, photonic crystal fibers, or different glass fibers. This Adjustable Force Fiber Clamp has been designed to allow rapid mounting and dismounting of a variety of photonic components from bare optical fibers, optical fibers mounted in ceramic ferrules, to multi-channel waveguides.


Microscope Objective Holder - 7FA2

Standard RMS
Microscope objective thread
Wide range of micro objectives


Roll & Pitch Tilt Platform - 7FA3

Travel in z axis: -2 mm, +4 mm
Travel roll, pitch +/- 4o
Resolution 10 arcsec


Fiber Cable Clamp - 7FA4

This accessory prevents cabled fiber from being accidentally disturbed. For cables with diameters from 900 µm to 3 mm.


Pitch & Yaw Platform - 7FA5

Yaw +-/ 4o
Pitch +/- 3o
Resolution 10 arcsec
Load capacity 2.00 kg
Weight 0.15 kg


Adapter Plate - 7FA6

Fixed Angle Bracket 7FA7 is mounted through Adapter Plate 7FA6 to the fixed part of Fiber Coupling Stage 7TF2


Fixed Angle Bracket - 7FA7

Is used as an adjustable platform for mounting other components


Lock-Down Clamp - 3WFA-01

These clamps are used to fix the accessories to the mounting platform of the 7TF2



Ordering Information
Model Price Availability
7FA1 294.00 € today
7FA2 47.00 € today
7FA3 189.00 € today
7FA4 36.00 € today
7FA5 157.00 € today
7FA6 39.00 € today
7FA7 51.00 € today
