7T167-50 - Aluminium Translation Stages Low Profile
Aluminium Translation Stages Low Profile
Zoom in
Printable version
View drawings
Download 3D
Precision movement
50 mm travel range
Stackable for multi-axis positioning
Reversible for left or right hand applications
2 Inches (Ø50 mm) clear aperture
Insert platform with M6, M4 and clearance holes
Similar Motorized version of stages
Vacuum version available

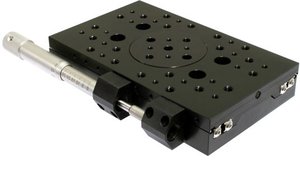

Low Profile Aluminium Translation Stages 7T167 provide single axis movement. Items are fixed on a platform by M6 and M4 tapped holes. The stages have a central Ø50 mm (2 Inch) clear aperture, which remains unobstructed over some 15 mm of travel. You close the aperture with an insert platform - laid against the resting flange. The insert platform provides additional mounting holes, which you can rotate. It is locked by two fixing screws. Angle brackets 2AB167-50, tie the stages 7T167 in X-Y-Z translation system.

Aluminium Translation Stages Low Profile 7T167-50 XYZ
7T167-50 XYZ

2AB167-50
Available "left-hand" version 7T167M-50

Specifications
Travel range2" (50.8 mm)
Sensitivity1 µm
Reading accuracy5 µm (1/2 division)
PrecisionHigh
Actuator9S75M-AL
Angular deviation<200 µrad
TypeHigh performance
Load capacity:
Horizonta16 kg
Vertical7 kg
Assemblies:
X-Ydirectly
Z2AB167-50
Removable insert7T167-25.07-01
Ordering Information
Model Weight, kg Regular
Price €

7T167-50 1.2 553.00
7T167-50XY 2.4 1106.00
7T167-50XYZ 3.7 1718.00
7T167M-50 1.2 553.00
7T167M-50XY 2.4 1106.00
7T167M-50XYZ 3.7 1718.00
