| Specifications |
 |
| Goniometer Rotation range | | ±15°
|
|
|
|
| Reading resolution | | 0.1°(vernier scale)
|
|
|
|
| Drive geometry | | Lever(tangential)
|
|
|
|
| Driving screw pitch | | 0.25mm
|
|
|
|
| Transmission ratio | | 0°27'59"...0°30'45"(per revolution)
|
|
|
|
| Ratio decimal | | 0.4665°...0.5126°(per revolution)
|
|
|
|
| (the ratio is per revoliution)
|
|
|
|
| Horizontal load capacity | | 1kg
|
|
|
|
| Body material | | Aluminium
|
|
|
|
| Finish | | Black anodized
|
|
|
|
| Goniometer Weight | | 0.1kg |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
Product |
|
Price |
|
Availability |
|
|
|
|
|
|

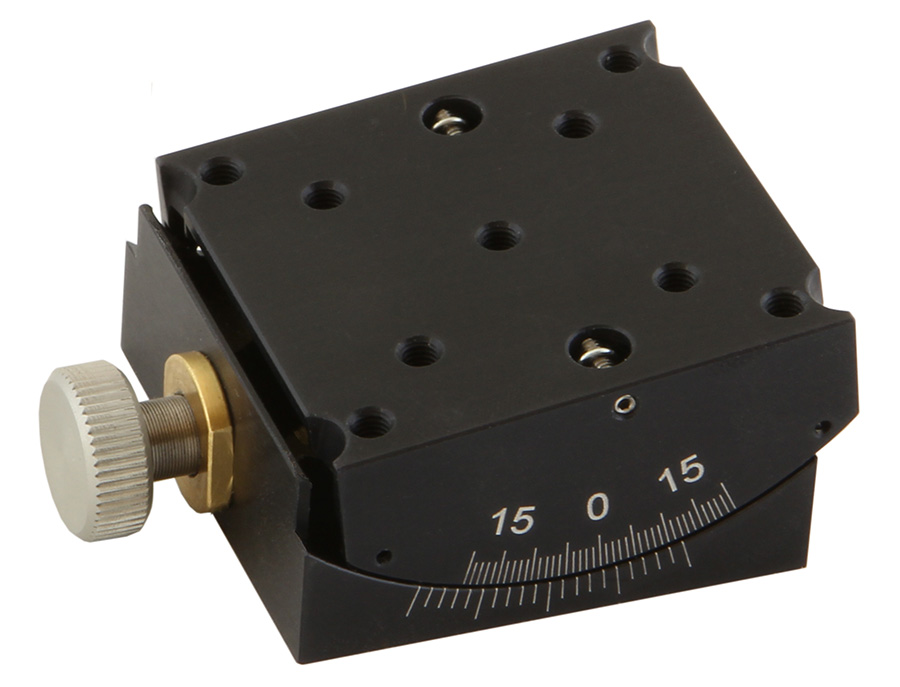

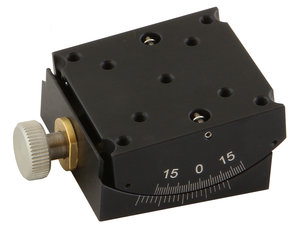

| 7G174-30 |
|
Small
Manual
Goniometer |
|
€ 230.00 |
|
today |
|
|
|
|
|
|
|
