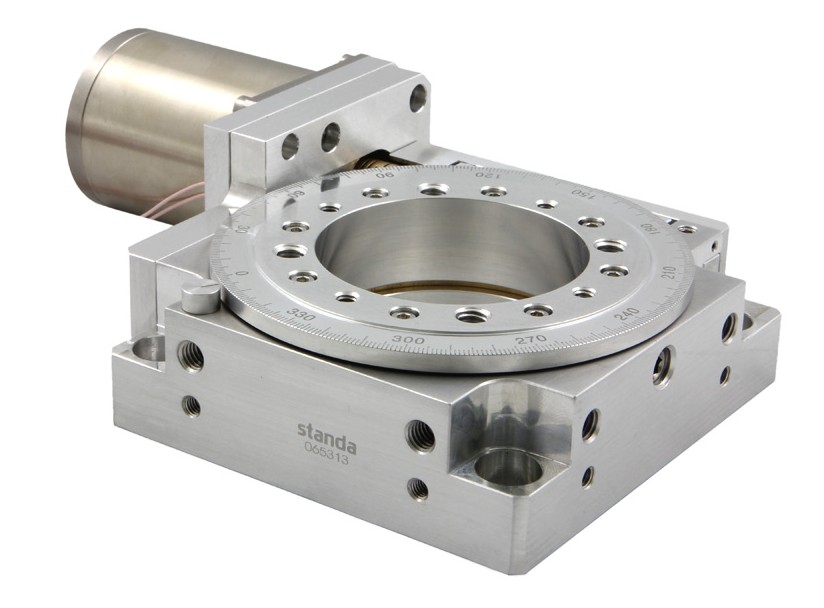

8MR190V-2 - Vacuum Compatible Motorized Rotation Stage
Vacuum Compatible Motorized Rotation Stage
Zoom in
Printable version
Non-vacuum version


Vacuum Compatible Motorized Rotation Stage is another example of conversion of standard rotation stage into vacuum compatible stage. It incorporates all features from it's standard sibling - a 360° precise rotation, 0.01° accuracy and load capabilities. The stages is made with 2" (50.8mm) central hole. Suitable for Torr 10-6 vacuum.

High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 Torr) and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 Torr
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Rotation range360°
Resolution in full step0.6arcmin (0.01°)
Max.rotation speed2turn/min
Backlash0
Wobble0.5arcmin
Eccentricity10µm
Load capacity
Horizontal10kg
Vertical2kg
Torque0.6Nm
Weight1kg
MotorVSS42
Recommended controller8SMC5-USB
Ordering Information
Model
8MR190V-2-VSS42
