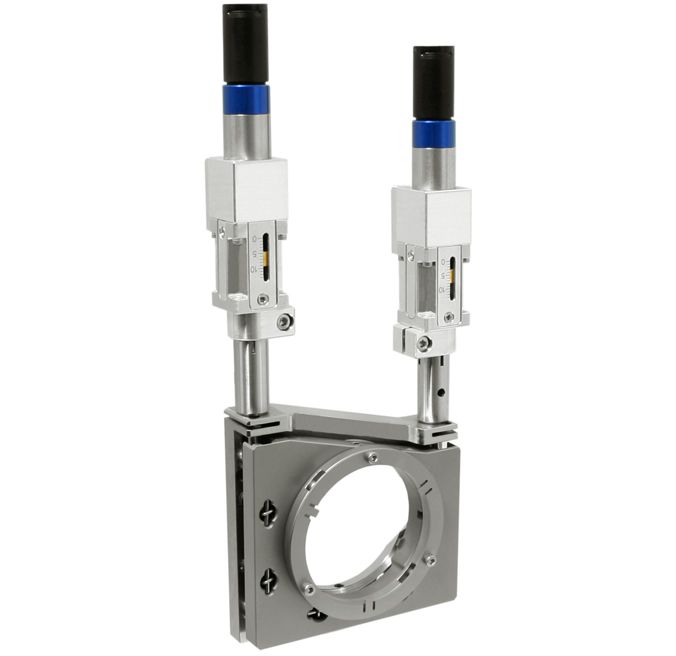

8MKVDOMV-2 - Vacuum Compatible Motorized Vertical Drive Mirror Mount with DC motor
Vacuum Compatible Motorized Vertical Drive Mirror Mount with DC motor
Zoom in
Printable version
View drawings
2" optic diameter
Stainless steel
Annealed front panel
Compact/robust design
Super stable
Non-vacuum manual version
Non-vacuum motorized version
For 1" optics
Manual version for vacuum



Vacuum Compatible Motorized Vertical Drive Mirror Mounts with DC motor 8MKVDOMV-2 are designed to minimize mount-induced wavefront distortions. In conventional mounts, a side screw tightens the mirror. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. 8MKVDOMV-2 mirror mounts use secure 3-points mirror suspension in between frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion. Due thermal processes on optic holding part, all metal inner tensions were removed and part makes none micro movements. These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.


8MKVDOMV-2
Conventional optics mounting with plastic tip fixing screw from side. Fixed with 3 spots on flat spring. Only for 8 mm thickness optics.



8MKVDOMV-2-05
If you have optics which thickness is 12,7 mm, we recommend Optical Mount with Supporting Adapter.


3BPVDOM Universal Base Plate is designed for attaching Vacuum Compatible Motorized Vertical Drive Mirror Mount with DC motor 8MKVDOMV-2 and to STANDA optical tables or to another stages.


Vertical Drive Optical Mount series

5KVDOM-05
0.5" optics

5KVDOM-1
1" optics

5KVDOM-2
2" optics

5KVDOM-3
3" optics

High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Optics diameter50,8 mm
Clear aperture48 mm
Tilt/tip range±2,5°
Angular Resolution
by horizontal1 arcsec.
by vertical1,25 arcsec. in the middle tilt of platform
Lead screw pitch0,25 mm
Cable1,2 m length cable included
Actuator2 x 8CMA16DCV-13/15
Optocoupler end limit switches2 per actuator
Vacuum compatible DC motorDCE1841
Motor connectorHDB15(M)
Recommended controllers8SMC5-USB
Ordering Information
Model
8MKVDOMV-2
8MKVDOMV-2-05
