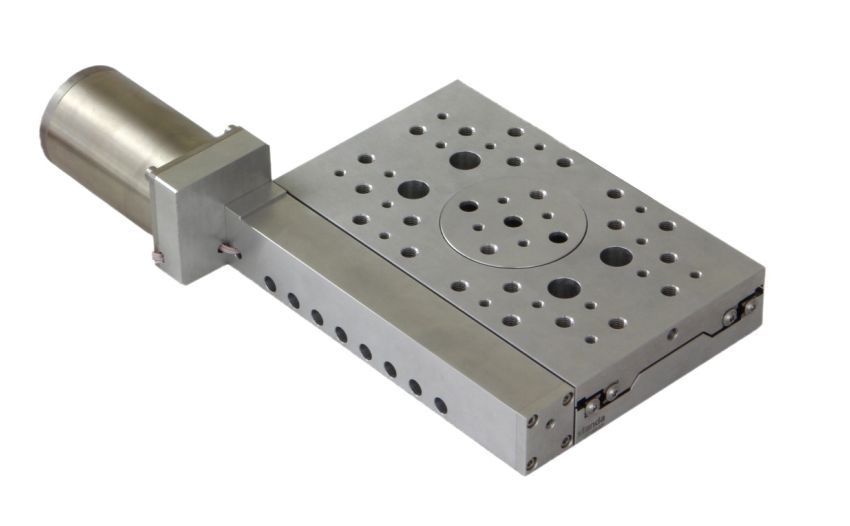

8MT167V-100 - Vacuum Compatible Motorized Stage
Vacuum Compatible Motorized Stage
Zoom in
Printable version
View drawings
Non-vacuum version



Vacuum Compatible Motorized Translation Stage 8MT167V-100 is designed on the basis of 7T167-50 translator. The movement is produced by a stepper motor through the reducing gear and a lead-screw. There are 1000 steps per millimeter. Individual units are accompanied by indication of electrical parameters and connection schemes of the motors. The motors have 200 steps per revolution. To drive the motor, we offer a range of controllers. Controllers can drive the motor in 1,1/2,1/4,1/8 step division mode. With the help of a Connecting Plate 2CP167V-100 and Angle Bracket 2AB167V-100 it is possible to assemble translation stage in two or three coordinates.

Model 8MT167SV-25LS-VSS42 is made with solid one-piece platform, please take a look here.

High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Travel tange100 mm
Resolution
in full step1 µm
in 1/8 step0.125 µm
Lead screw pitch0.5 mm
Reduction ratio2.5/1
Max speed2 mm/s
Load capacity
Horizontal6 kg
Vertical1.5 kg
MotorVSS42
Vacuum compatible cableintegrated, 2 m
ConnectorHDB15(M)
Limit Switches2, mechanical
switch polaritypushed is closed
Weight1.6 kg
Ordering Information
Model
8MT167SV-100-VSS42
8MT167V-100-VSS42





Cant find what you want? Not a problem! Browse our standard sections and order a vacuum modification of standard piece using this form!
