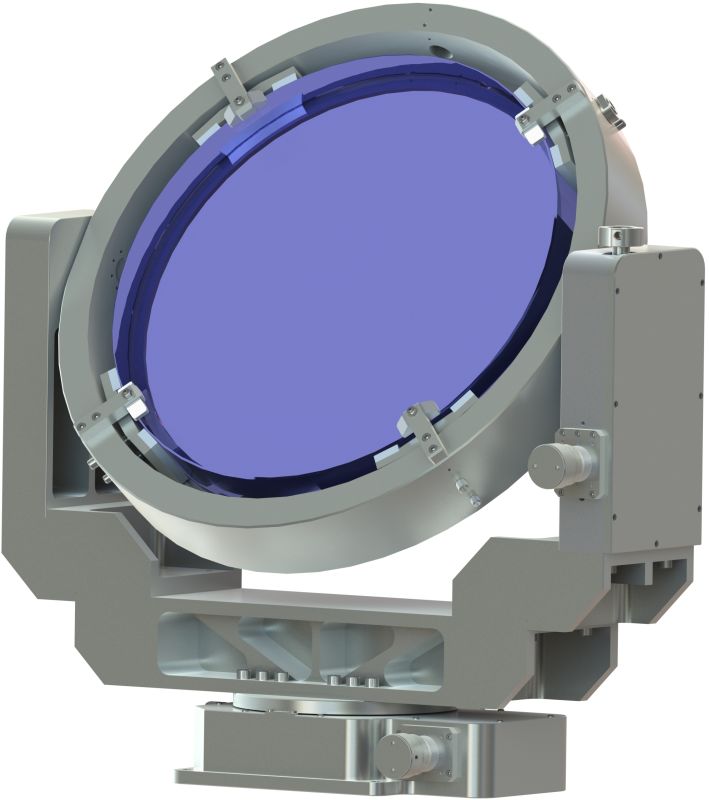

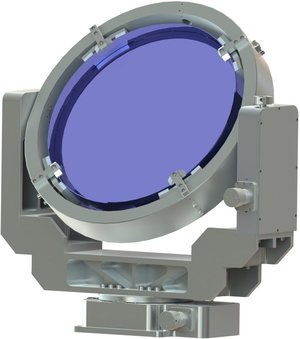

5LAOMV - Vacuum Compatible Gimbal Optical Mount
Vacuum Compatible Gimbal Optical Mount
Zoom in
Printable version
View drawings
Rotation range in azimuth and elevation: 360°/360°
Fine adjustment range: ±4°/±4°
High positioning sensitivity: 1arcsec
Maximum Acceptable thickness of optical element: 100 mm.
Maximum Acceptable weight of optical element: 150 kg.
High thermal and vibration stability
Near zero Backlash
Various range of apertures can be customized on request.
Motorized version of optical mount is available



5LAOMV Vacuum Compatible Gimbal Optical Mount has been designed for high precision positioning of large optical elements up to 600mm in vacuum environment. Commonly LAOM optical mount is extremely efficient solution in applications such as: high power laser systems and astronomy.

LAOM series optical mounts have complete 360 degree rotation in azimuth and elevation axes if transmission of both coordinates is decoupled. Special spring preloaded internal mechanisms result near zero backlash motion. Fine adjustment in ±4° range results high quality motion with sensitivity less than 1arcsec.

Age hardened aluminum alloy and special ultrasound cleaning guarantees low outgassing, softness of assembly, high thermal stability and high vibration stability.



Specifications
Kinematics and Feedback information
Azimuth/Elevation (coarse)360°/360°
Azimuth/Elevation (fine)±4°/±4°
Resolution3 arcsec
Sensitivity1 arcsec
AccuracyOn request
Bidirectional repeatability3 arcsec
Unidirectional repeatability3 arcsec
Backlash0
Load and Transmission information
Horizontal load capacity150 kg
Lead Screw Pitch1 mm
Material and environment conditions
Base materialAluminum/Stainless steel
Coatinguncoated
Environment pressure10-8torr
Ambient temperatureOn request
Additional Details
Measurement systemMetric
Weight79 kg
ApertureØ590 mm
Max optic diameterØ600 mm
Min optic diameterØ500 mm
Max optic thickness100 mm
Ordering Information
Model
5LAOMV-550
5LAOMV-600
