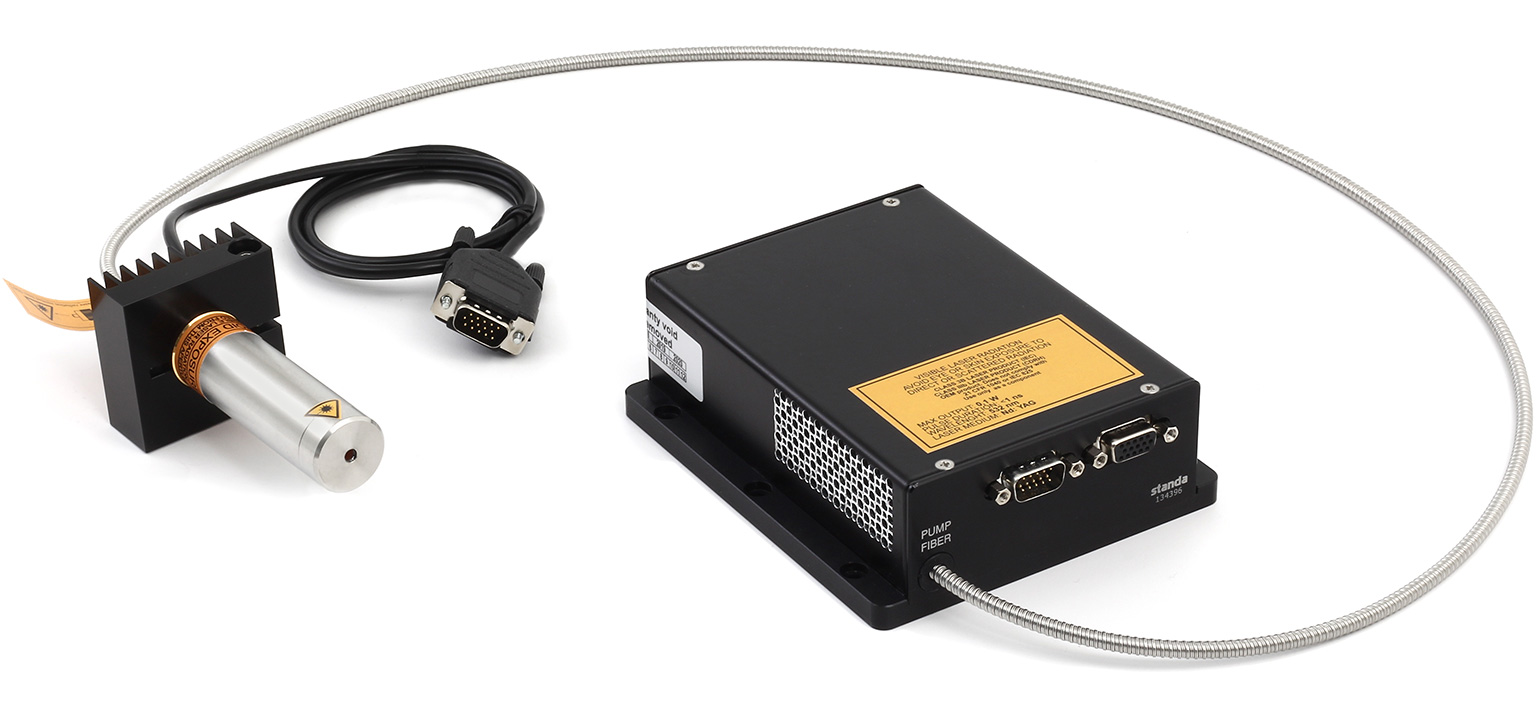

Pulsed DPSS Micro Laser: 532nm, 23mW, 100kHz, 450ps, SLM

DPPS Micro Laser: 532nm, 23mW, 100kHz, 450ps, SLM
Zoom in
Ordering Information
Model Regular
Price
Price
on Sale
Availability
STA-01SH-OEMAR 11218 8979 5 pcs.


Full specifications datasheet (PDF)


MICROLASER

STA-01SH-OEMAR



SPECIFICATIONS1

Parameter2

Value

Notes

Operating mode

pulsed

Repetitively passively Q-switched

Wavelength [nm]

532

Second Harmonic of Nd:YAG 1064 nm (4F3/2 - > 4I11/2 transition)







Average Power [mW]

≥23

Measured at 100 kHz.

Pulse Repetition Rate PRR [kHz]

100

Laser operating PRR

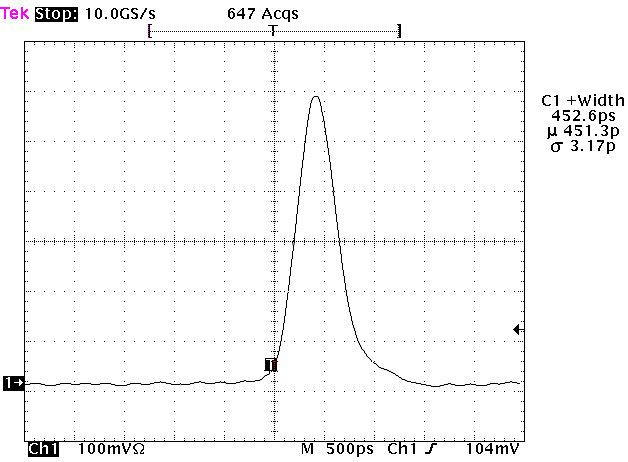

Pulse Duration FWHM [ps]

450 ± 50

Measured at 532 nm

Pulse Timing Jitter [ns]

<300

Expected to be less than 50 ns

Average Power Stability [%]

RMS

≤ 1

Over 8 hours, after 30 min warm up.
Room conditions, Tamb = 23 ± 2 C

PTP

≤ 10

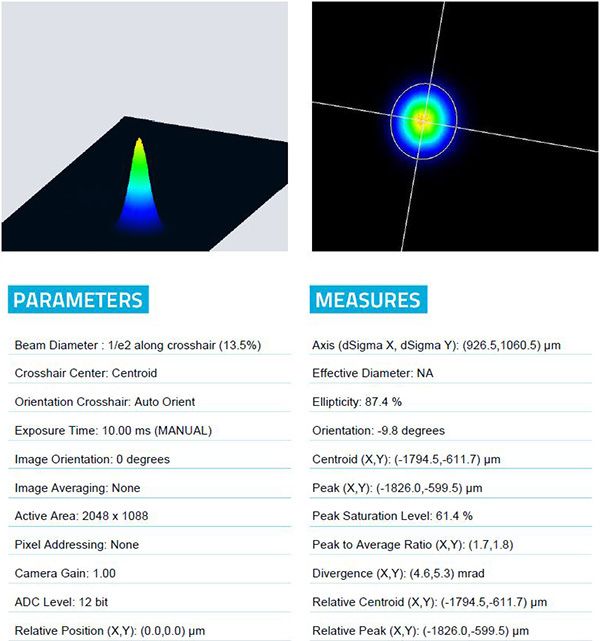

Spatial Mode

TEM00



Half-angle beam
divergence 1/e2 [µm]



Available upon request

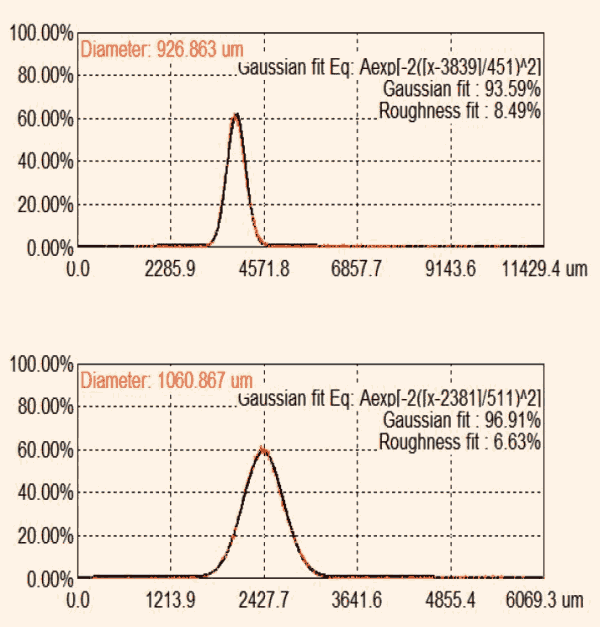

Beam Diameter 1/e2 [mm]

0.80-1.20



M2

≤1.3



Polarization

Linear, better 100:1



Ellipticity3 [%]

≤20



Pulse Spectral Structure

SLM





Interfaces

USB,
External Triggering (TTL rising edge)

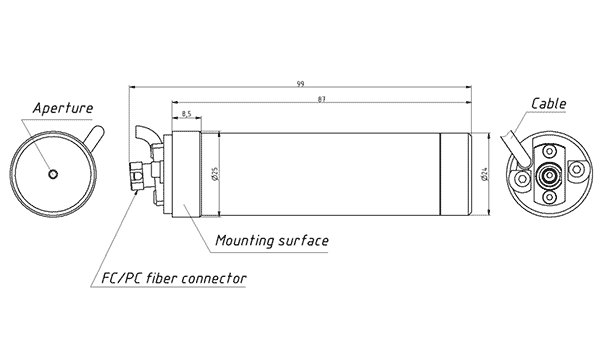

Laser Head Dimensions4
Height x Length x Width [mm]

99 x Ø 24

51 x 99 x 51(including Heat sink)

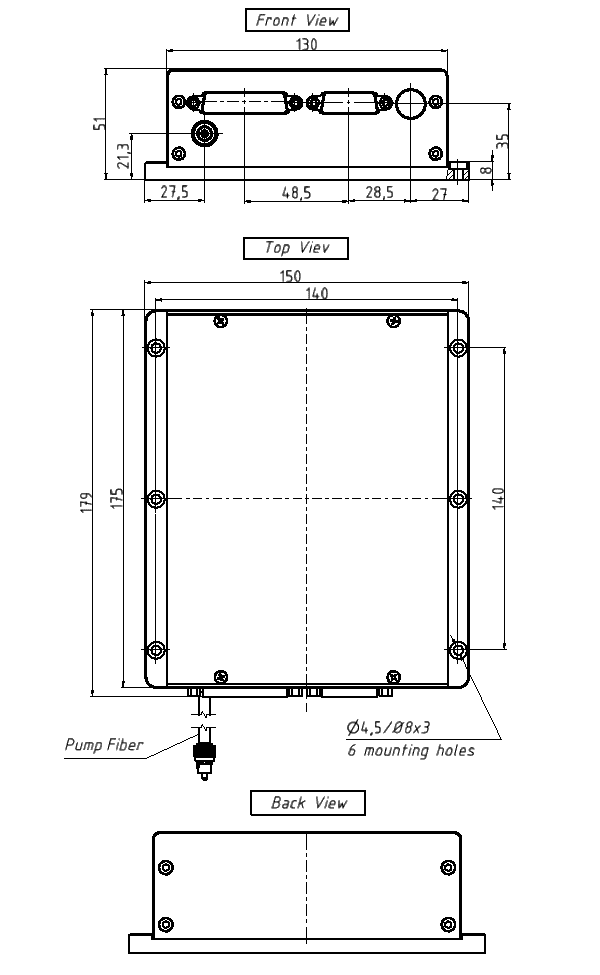

Laser Controller Dimensions
Height x Length x Width [mm]

51 x 179 x 150



Laser Controller Weight [kg]

≈ 0.8 - 0.9





Laser Head Cooling

Provided

Heat Sink (refer to environment and mounting requirements)

Laser Controller Cooling

Not provided

(refer to environment and mounting requirements)

Electrical specifications:

Input Power Voltage

5VDC ± 0.25V



Current

<8A

Typical < 6 A (at room temperature),
cold start < 8 A

Operating environment requirements:

Operating Conditions

Tamb = 23 ± 2 C, humidity 45%-60%

Non-condensing environment.

Temperature of baseplate for Laser Head mounting

<30

recommended

Temperature of baseplate for Controller mounting

<30

recommended







Warranty

5000 hours or 12 months.

Whatever occurs first.



All parameters are obtained at Tamb = 23.0 C ± 2.0 C. If ambient temperature range during laser operation is wider, then average power could be less stable than specified

________________________________

1Specifications are subject to change without notice

2Parameters are measured at 100 kHz

3[1-(minor axis/major axis)] x 100%, zero for perfect round beam.

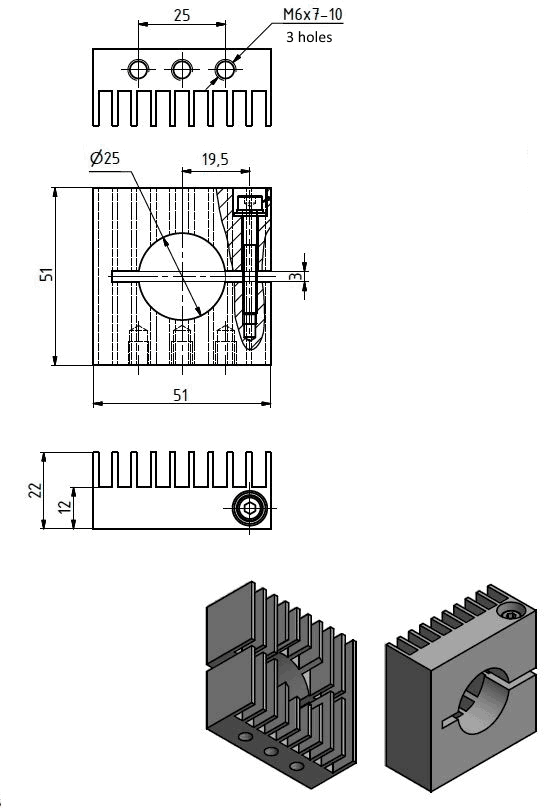

4Overall system dimensions are shown in the drawings below.


Chek the list of all Standa Micro Lasers
