6TP116, 6TP115 - Multi-Axis Tilt Platform
Multi-Axis Tilt Platform
Zoom in
Printable version
View drawings
Download 3D
Tilt Platform
M6 and M4 mounting holes
Dimensions: 148x92x33mm
Angular adjustment about two axes
List of all Tilt Platforms
Tilt Optical Mounts and Bases
Motorized version of Multi-Axis Platform

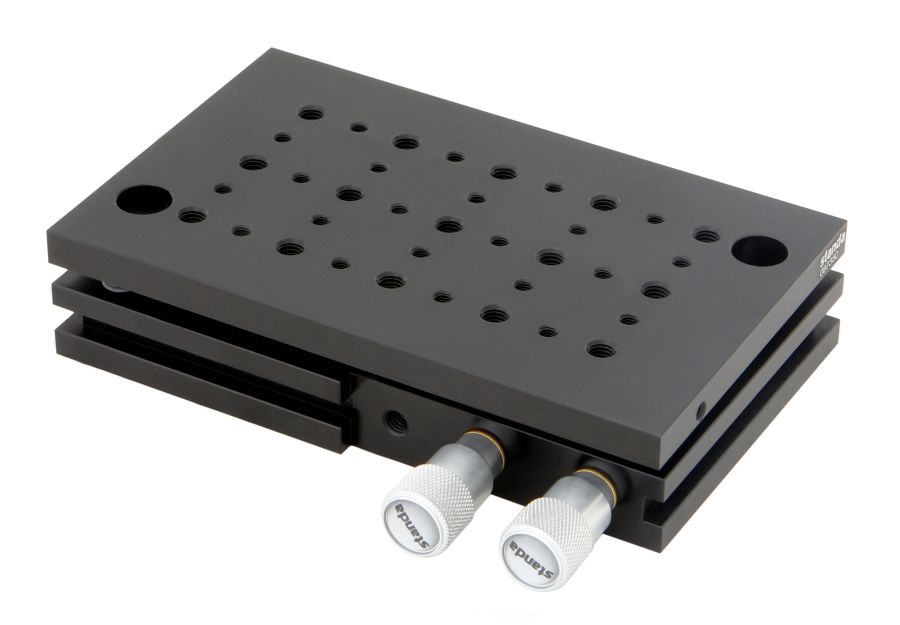

Multi-Axis Tilt Platform 6TP116 provides angular adjustment about two-axis - tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by two micrometers. The out-of-plane tilting range is ±2° and the in-plane rotation range is ±2.5°. Two micrometers screws are located side by side for a handy use. The adjustment movements are not calibrated, and they are uncoupled. The mounting platform has a 25 mm grid of tapped holes M6 and M4. Two clearance holes Ø6.2 are provided in the base of the unit. This allows to attach 6TP116 to tables and breadboards. Also you can clamp the base of the unit by STANDA Table Clamp 3TC5, this way you can orient the unit on the table in any direction. Tilt platform is made of black anodized aluminium.





Slightly narrower modification without fastening slots - 6TP115.


Specifications
Tilt Θy±2°
Rotation Θz±2.5°
Load capacity15 kg
Weight1 kg
Ordering Information
Model Price Availability
6TP116 € 299.00 today
6TP115 € 299.00 today



Short video with (8MTP116) motorized version of 6TP116 tilt platform in action.
