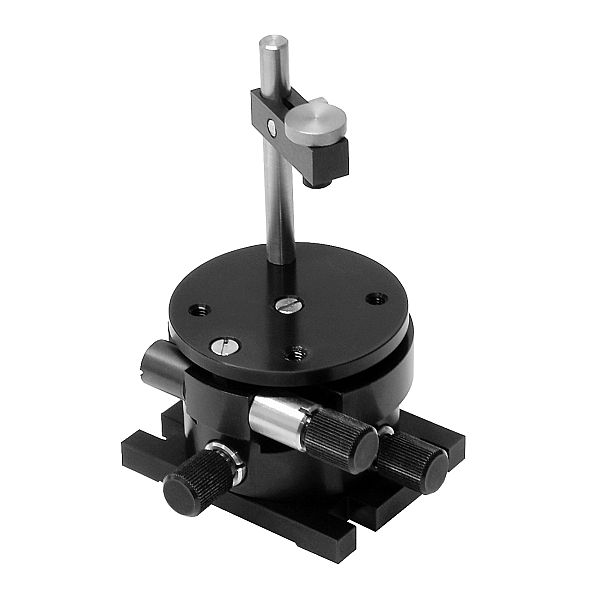

Tilt / rotation stage 6PT110 provides two independent tilt adjustments within ±5° range and ±5° in-plane rotation adjustment. Precision screws provide 9 arcsec resolution in rotation and both tilt planes (adjustment screws M6×0.25, 3 pcs.). The mounting clamp with a spring-loaded disengagement knob allows easy insertion and removal of optical components up to 39 mm height and 30×30 mm in square. Stage is attached to tables through clearance holes in its base. The main elements of the table are finished with black anodized aliuminium.
