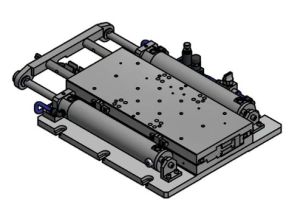

Travel range: 100, 200, 300 mm
|
|
|
Resolution: <0.31 nm
|
|
|
Precise Ball Screw Design with preloaded low baklash screw pair
|
|
|
High resolution non-contact optical linear incremental encoder
|
|
|
Bidirectional repeatability (RMS): ±0.35 µm
|
|
|
Maximum velocity: 150 mm/s
|
|
|
High vertical load capacity up to: 20 kg.
|
|
|
High accuracy linear guide and carriage system with recirculating balls
|
|
|
Accuracy: ±1 µm
|
|
|
Long life performance guaranteed
|
|
|
Easy integration with metric/imperial opto-mechanical systems
|
|
|
Multy axes system with 5 arcsec orthogonality is available
|
|
|
Can be applied to industry applications like: laser cutting, scribing, drilling, marking
|
|
|
Systems is equiped with protection from dust and spray
|
|
|
Can be suplied with different type of gears, brakes.
|
|
|
Perfect suitable for vertical focusing-like applications.
|
|
|
All measurement reports are included by default! |
| |
|
In the video below 8MTL1301-170Z (linear motor vertical stage) is integrated as a Z axis in granite gantry XYZ positioning system.
| Model | 8MTL1301-170Z-Len1-005 |
| KINEMATICS & FEEDBACK INFORMATION |
| Travel range,mm | 100 |
| Linear encoder type | Optical |
| Linear encoder model | LEN1 |
| Linear encoder grating period, µm | 20 |
| Linear encoder interface | Differential RS422 or 1Vpp |
| Linear encoder internal multiplier | YES |
| Linear encoder multiplication factor | up to x65536 |
| Linear encoder reference mark (index) | YES |
| Absolute accuracy (before calibration), µm 1) | ±3 |
| Absolute accuracy (after calibration), µm | ±0.5 |
| Bi-directional repeatability (peak to peak), µm 1) | ±0.35 |
| Bi-directional repeatability (RMS), µm 1) | ±0.15 |
| Pitch, µrad/arcsec 2) | ±60 / ±12.38 |
| Yaw, µrad/arcsec 2) | ±60 / ±12.38 |
| Roll, µrad/arcsec | ±60 / ±12.38 |
| Maximum velocity (no load), mm/s 3) | <1000 |
| Maximum acceleration (no load), mm/s2 4) | <10000 |
| Limits switches type (safety) | Hall |
| Limit switch polarity (safety) | Positive end of run |
| Limit switch voltage, V | 5 … 24 |
| LOAD, GUIDING & TRANSMISSION INFORMATION |
| Design type | Linear motor Z stage |
| Linear motor model | LM3 |
| Linear motor design type | Ironless BLDC motor |
| Maximum bus voltage, VDC | >320 |
| Maximum continuous current, APK | 3.66 |
| Maximum Peak current, APK | 11 |
| Maximum Continuous force, N | 28.4 |
| Maximum peak force, N | 113.5 |
| Pole pitch (NN), mm | 30 |
| Load capacity (vertical), kg 5) | 8 |
| Moving mass, kg 6) | 2.2 |
| Guiding system | Recirculating linear rails and carriages units with caged balls |
| MATERIAL AND ENVIRONMENT CONDITIONS |
| Housing material | Aluminum alloy |
| Housing coating (finish) | Black anodizing |
| Environment pressure | Normal atmosphere |
| Operating temperature, °C | 20 ± 2 |
| CONTROL, COMMUNICATION AND CABLING |
| Recommended controllers 7) | CMXA / UDMXA |
| Recommended drivers 7) | CMXA / UDMXA |
| Recommended power supply 8) | 1 phase / 3 phase source |
| Built-in communication interface | EtherCAT / RS232 / USB / TCP-IP |
| Cable length, m | Max 5 |
| Differential outputs 9) | On request |
| ADDITIONAL DETAILS |
| Dimensions of moving platform (W × L), mm | 130 × 300 |
| Stage dimensions (W × L × H), mm | 273 × 385 × 72 |
| Measurement system | Metric / Imperial |
| Weight, kg | TBD |
1) Absolute Accuracy & Bi-Directional Repeatability measurements processed by Zygo ZMI 501 Michelson laser interferometer.
2) Pitch & Yaw measurements are processed by 11D-ALI-COL electronic autocollimator. Resolution of 11D-ALI-COL: 1 µrad. Environment error: 1 µrad.
3) Maximum Velocity is electrically limited by encoder and driver CUT-OF frequency; maximum velocity is also limited by guiding system.
4) Maximum Acceleration is limited by Drivers` Peak Current, Motors` Peak Current and External Load (inertia). Please contact Standa for explanation.
5) Load Capacity is limited by position of load and integrated guiding system. Please contact Standa for loading calculation.
6) Moving Mass is constant parameter of system which characterize m0 or inertia of unloaded system.
7) Recommended controllers & Recommended drivers can be optimized for a certain application. Plaese contact Standa for recommendation.
8) Recommended power supply depends on required duty cycle and load. Please contact Standa for recommendation.
9) Differential Outputs are available in passive (buffered) or active (modulated) way with LCMv2.
|
