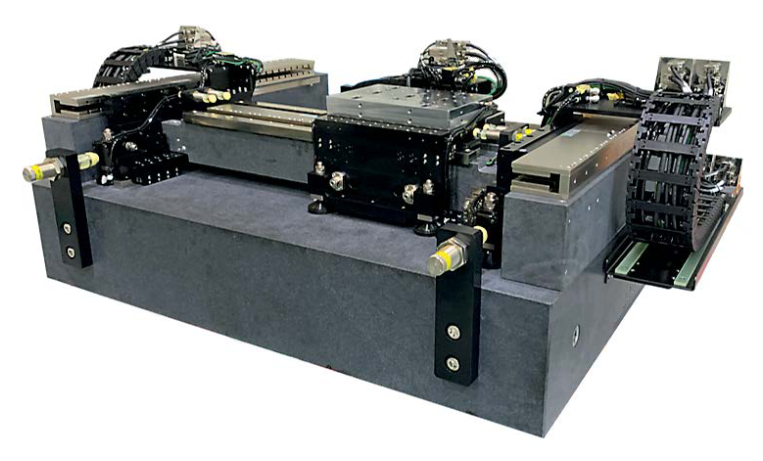

| Model | 8-0401 |
| KINEMATICS & FEEDBACK INFORMATION |
| Active axes | X | Y |
| Travel range (X,Y),mm | 400 |
| Encoder type | Optical |
| Encoder model | LenX |
| Encoder resolution,nm | <2.45 |
| Encoder interface | 1Vpp or Differential RS422 |
| Internal multiplier | YES |
| Multiplication factor | Up to ×65536 |
| Encoder grating period, µm | 20 |
| Reference mark (index) | YES |
| Absolute accuracy (after calibration), µm | ±1 |
| Straightness, µm | ±1 |
| Flatness, µm | ±1 |
| Bi-directional repeatability (RMS), µm | ±1 |
| Pitch, µrad/arcsec | ±9.7 / ±2 |
| Yaw, µrad/arcsec | ±9.7 / ±2 |
| Maximum velocity, mm/s2 | >800 |
| Maximum acceleration, mm/s2 | >8000 |
| Limits switches type (safety) | Hall |
| Limit switch polarity (safety) | Positive end of run |
| Limit switch voltage, V | 24 |
| LOAD, GUIDING & TRANSMISSION INFORMATION |
| Design type | AIRBEARING GANTRY |
| Linear motor design type | Ironless BLDC motor |
| Maximum bus voltage, VDC | 320 |
| Quantity of motors | 2 | 1 |
| Load capacity (centrally placed), kg | 20 |
| Moving mass, kg | |
| Guiding system | AIR BEARINGS |
| MATERIAL AND ENVIRONMENT CONDITIONS |
| Housing material | Granite |
| Housing coating (finish) | N/A |
| Environment pressure | Normal atmosphere |
| Operating temperature, °C | 20 ± 2 |
| CONTROL, COMMUNICATION AND CABLING |
| Recommended controllers | CMXA |
| Recommended drivers | CMXA / DUMXA |
| Recommended power supply | 1 phase 220 VAC ~50 Hz supply |
| Recommended communication iterface | EtherCAT / RS232 / TCP-IP |
| Cable length, m | Up to 5 m |
| Differential outputs | On request |
| ACCESSORIES INFORMATION |
| Base for mechanical interface | On request |
| Cable management | Yes |
ADDITIONAL DETAILS |
| Dimensions of moving platform (W × L), mm | TBD |
| System dimensions (w/o supports) (W × L × H), mm | 1265.2 × 1656 × 1169 |
| Measurement system | Metric / Imperial |
| Orthogonality, µrad/arcsec | TBD |
| Aperture (center placed) (W × L), mm | Can be requested separately |
| Weight, kg | TBD |
