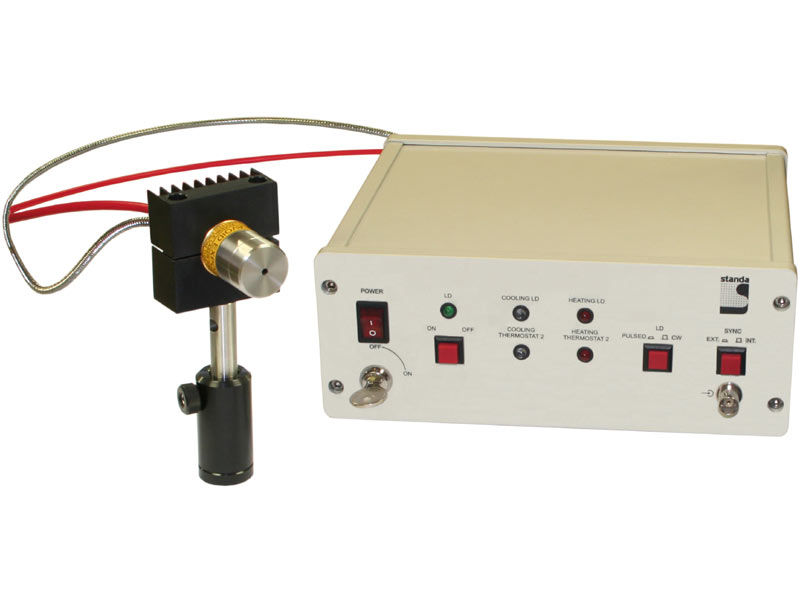

STA-01 - Micro Laser Nd:LSB
Micro Laser Nd:LSB
Zoom in
Printable version
View drawings
Download PDF
TEM00 and pulsed spectral structure SLM
Applications:
Pump source for harmonic generators, optical parametric oscillators and amplifiers (using periodically poled KTP or LiNbO3 crystals)
Low-coherence "white light" interferometry
Test and measurement systems
Optical coherence tomography
Two-photon microscopy
Fluorescence microscopy
Laser seeding
Spectroscopy



Diode Pumped Nd:Yag Solid-State Micro Laser delivers high peak powers (up to 200 kW) with sub-nanosecond pulse lengths or high repetition rates (up to 200 kHz) and are now available from Standa. This family of highly reliable, solid-state lasers consists of a power supply unit and laser head. The power supply unit includes a laser diode (LD) driver, fiber pigtailed LD, and internal pulse generator. Micro Laser pulse repetition rate can be set by Standa from single pulse to max repetition rate agreed with customer. The laser operates from external or internal trigger mode. STA-01 Micro Laser - produces pulses of fundamental wavelength.

Table of Typical Micro Laser Models

Models * STA-01-1 STA-01-2 STA-01-3 STA-01-4 STA-01-5 STA-01-6 STA-01-7 STA-01-8 STA-01-9
Wavelength, nm 1064
Average Output Power (max), mW 140 100 120 125 65 20 100 200 40
Pulse Energy, µJ 2 2 3 5 6.5 20 100 200 0.4
Pulse Width (FWHM), ns 0.5 0.6 0.8 0.6 0.7 < 0.2 0.6 0.6 0.4
Repetition Rate (max), kHz 70 50 40 25 10 1 1 1 100
Beam Profile M2 ≤ 1.1
Pulse Spectral Structure Single longitudinal mode
Polarization Ratio > 100 : 1
Beam Waist Diameter Inside the Laser Head 1/e2, µm 25 – 400
Pulse Spectrum FWHM, pm < 5 (near transform limited)
Pulse to Pulse Energy Stability RMS < 0.4
Power Stability Over Six Hours < ±1.5%
External Power Supply Voltage, V AC 100 – 240
Operating Temperature, °C 22±11, non-condensing
Interfaces USB, External Trigger (TTL rising edge)
1 Hz – max repetition rate
Laser Head Dimensions:
Diameter, mm 25
Length, mm 44.5
Warranty 12 months or 5000 hours whichever occurs first
Laser Head Cooling Radiator: 12LGL2-25 included
Laser Controller Cooling Included

* Each Standa STA-01 laser is equipped with proper heatsink by default.

1 - Is specified an ambient temperature at which the laser parameters exactly meet the specifications in the table.

Specifications are subject to changes without advance notice.

OEM Manufacturing services. Standa provides contract manufacturing services for application-specific Lasers. Please call your local Standa distributors or Standa office for more information.



Ordering Information
Model
STA-01-1
STA-01-2
STA-01-3
STA-01-4
STA-01-5
STA-01-6
STA-01-7
STA-01-8
STA-01-9
