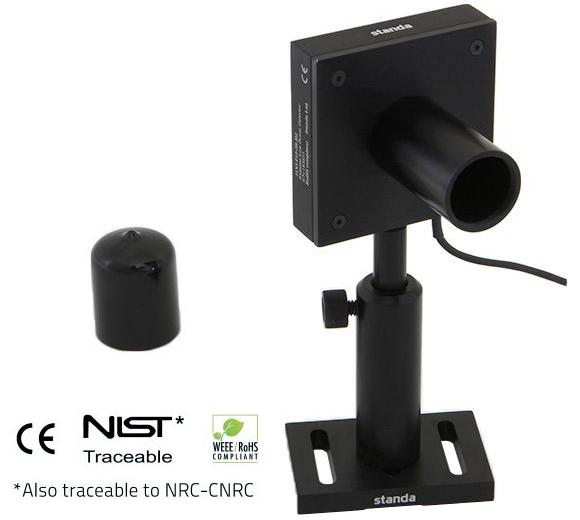

11XLP12 - Extreme Low Power Laser Detector
Extreme Low Power Laser Detector
Zoom in
Printable version
Download PDF
User manual 11XLP12
Low Power Thermopile
Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device
Minimal Thermal Drift
Only 6 µW/°C (with the IR filter)
High Sensitivity
200 mV/W (without the IR filter)
Special Model For Ultrashort Pulses
VP (Volume Absorber) version is perfect for low power lasers with ultrashort pulses (ps and fs)
IR Filter (XLPF12 model)
Removes unwanted IR interference
Isolation Tube
Eliminates power fluctuations created by air turbulence
Smart Interface
Containing all the calibration data



11XLP12-3S-H2 Extreme Low Power Laser Detector best suitable for low power im both the µW and mW regimes with very low thermal drift. Featuring broadband flat spectral response, minimal thermal drift and a noise equivalent power as low as 0.5 µW the 11XLP12 is ideally suited for measuring any pulsed or CW low power laser.

Specifications
Model 11XLP12-3S-H2 11XLPF12-3S-H2 11XLP12-3S-VP
MAX AVERAGE POWER(CONTINUOUS / 1 MINUTE) 3 W / 3 W Broadband Absorber 3 W / 3 W Broadband Absorber, with IR Filter 3 W / 3 W Volume Absorber
EFFECTIVE APERTURE 12 mm Ø 12 mm Ø 12 mm Ø
COOLING METHOD Convection Convection Convection
MEASUREMENT CAPABILITY
Spectral Range 0.19 – 20 µm * 0.28 – 2.1 µm a 0.25 – 20 µm *
Noise Equivalent Power b 0.5 µW 0.5 µW 0.5 µW
Thermal Drift c 12 µW/°C 6 µW/°C 12 µW/°C
Rise Time (nominal) d 2.5 sec 2.5 sec 3 sec
Sensitivity (typ into 100 k&Omh; load) e 200 mV/W 180 mV/W 220 mV/W
Calibration Uncertainty f ±2.5 % ±2.5 % ±2.5 %
Repeatability ±0.5 % ±0.5 % ±0.5 %
Energy Mode
   Sensitivity 25 mV/J 22.5 mV/J ---
   Maximum Measurable Energy g 5 J 5 J ---
   Noise Equivalent Energy b 12 µJ 12 µJ ---
   Minimum Repetition Period 16 sec 16 sec ---
   Maximum Pulse Width 300 ms 300 ms ---
   Accuracy with energy calibration option ±5 % ±5 % ---
DAMAGE THRESHOLDS
Maximum Average Power Density h 1 kW/cm2 1 kW/cm2 30 W/cm2 @ 1064 nm
8 W/cm2 @ 532 nm
4 W/cm2 @ 355 nm
Pulsed Laser Damage Thresholds Max Energy Dens. Peak Power Dens. Max Energy Dens. Peak Power Dens. Max Energy Dens. Peak Power Dens.
   1064 nm, 360 µs, 5 Hz 5 J/cm2 14 kW/cm2 5 J/cm2 14 kW/cm2 --- ---
   1064 nm, 7 ns, 10 Hz 1 J/cm2 143 MW/cm2 1 J/cm2 143 MW/cm2 4 J/cm2 571 MW/cm2
   532 nm, 7 ns, 10 Hz 0.6 J/cm2 86 MW/cm2 0.6 J/cm2 86 MW/cm2 3 J/cm2 429 MW/cm2
   355 nm, 7 ns, 10 Hz 0.3 J/cm2 43 MW/cm2 0.3 J/cm2 43 MW/cm2 1 J/cm2 143 MW/cm2
PHYSICAL CHARACTERISTICS
Effective Aperture 12 mm Ø 12 mm Ø 12 mm Ø
Absorber (High Damage Threshold) H2 H2 VP (Volume Absorber)
Dimensions 73H x 73W x 20D mm (72D mm with tube) 73H x 73W x 28D mm (80D mm with tube) 73H x 73W x 20D mm (72D mm with tube)
Weight (head only) 0.31 kg 0.32 kg 0.32 kg
Specifications are subject to change without notice

* For the calibrated spectral range, see the user manual.
a. This spectral range refers to the calibration traceability. For details, please contact us at: sales@standa.lt
b. Nominal value, actual value depends on electrical noise in the measurement system.
c. With STANDA 11MAESTRO.
d. With STANDA 11MAESTRO, 11UNO, 11P-LINK, 11TUNER and 11S-LINK monitors.
e. Maximum output voltage = sensitivity x maximum power.
f. Including linearity with power.
g. For 360 µs pulses. Higher pulse energy possible when customized for long pulses (ms), less for short pulses (ns).
h. At 1064 nm, 1 W CW.

Compatible Monitors:


11MAESTRO

11UNO

11TUNER

11M-LINK

11P-Link

11S-LINK


Ordering Information
Model
11XLP12-3S-H2
11XLP12-3S-VP
11XLPF12-3S-H2
