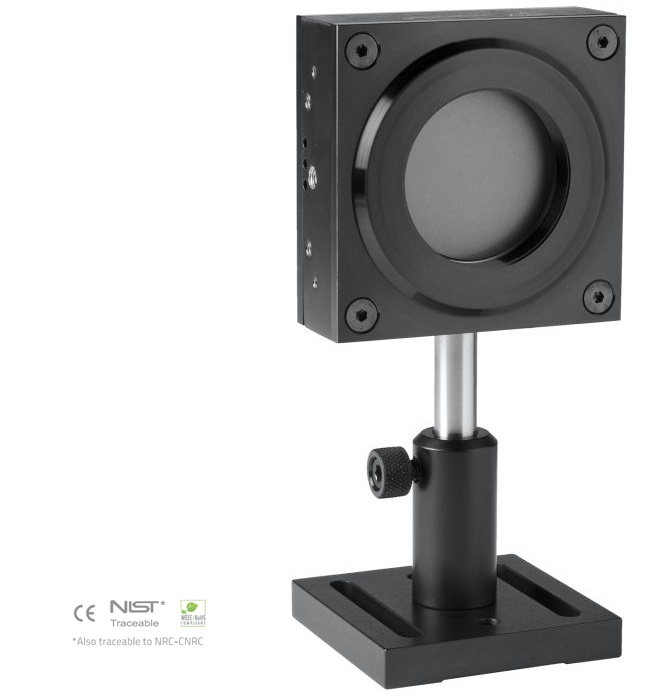

11UP50 - Laser Power Detector
Laser Power Detector
Zoom in
Printable version
Download PDF
Modular Concept
Increase the power capability of your detector with 4 different cooling modules
Very High Damage Threshold
100 kW/cm2 in average power density
Very Large Aperture
50 mm Ø effective aperture, perfect for the largest beams
Highest Energy Readings In The Series
Measure single shot energy up to 500 J
Smart Interface
Containing all the calibration data


Specifications
Model 11UP50N-40S-W9 11UP50N-50H-W9 11UP50N-50F-W9 11UP50M-50W-W9
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE) 40 W / 80 W 50 W / 85 W 50 W / 85 W 50 W f / 85 W f
EFFECTIVE APERTURE 50 mm Ø 50 mm Ø 50 mm Ø 50 mm Ø
COOLING METHOD Convection Heatsink Fan-Cooled Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range * 0.19 – 10 µm 0.19 – 10 µm 0.19 – 10 µm 0.19 – 10 µm
Noise Equivalent Power a 5 mW 5 mW 5 mW 5 mW
Rise Time (nominal) b 3.5 sec 3.5 sec 3.5 sec 3.5 sec
Sensitivity (typ into 100 kΩ load) c 0.12 mV/W 0.12 mV/W 0.12 mV/W 0.12 mV/W
Calibration Uncertainty d ±2.5 % ±2.5 % ±2.5 % ±2.5 %
Repeatability ±0.5 % ±0.5 % ±0.5 % ±0.5 %
Energy Mode
   Sensitivity 0.02 mV/J 0.02 mV/J 0.02 mV/J 0.02 mV/J
   Maximum Measurable Energy e 500 J 500 J 500 J 500 J
   Noise Equivalent Energy a 0.25 J 0.25 J 0.25 J 0.25 J
   Minimum Repetition Period 11.1 sec 11.1 sec 11.1 sec 11.1 sec
   Maximum Pulse Width 467 ms 467 ms 467 ms 467 ms
   Accuracy with energy calibration option ±5 % ±5 % ±5 % ±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density g 100 kW/cm2 100 kW/cm2 100 kW/cm2 100 kW/cm2
Pulsed Laser Damage Thresholds Max Energy Density Peak Power Density
   1064 nm, 150 µs, 5 Hz 100 J/cm2 667 kW/cm2
   1064 nm, 7 ns, 10 Hz 1.1 J/cm2 157 MW/cm2
   532 nm, 7 ns, 10 Hz 1.1 J/cm2 157 MW/cm2
   248 nm, 26 ns, 10 Hz 0.7 J/cm2 27 MW/cm2
PHYSICAL CHARACTERISTICS
Effective Aperture 50 mm Ø 50 mm Ø 50 mm Ø 50 mm Ø
Absorber (High Damage Threshold) W9 W9 W9 W9
Dimensions 89H x 89W x 32D mm 89H x 89W x 106D mm 89H x 89W x 116D mm 89H x 89W x 40D mm
Weight (head only) 0.62 g 0.93 g 1.38 g 0.81 g
Specifications are subject to change without notice

* For the calibrated spectral range, see the user manual.
a. Nominal value, actual value depends on electrical noise in the measurement system.
b. With STANDA 11MAESTRO, 11UNO, 11P-LINK, 11TUNER and 11S-LINK monitors.
c. Maximum output voltage = sensitivity x maximum power.
d. Including linearity with power.
e. For 360 µs pulses. Higher pulse energy possible when customized for long pulses (ms), less for short pulses (ns).
f. Minimum cooling flow 1.5 liters/min, water temperature ≤ 22°C, 1/8 NPT compression fittings for 1/4 inch semi-rigid tube. Contact STANDA for clean deionized water cooling module option.

g. At 1064 nm, 10 W CW.

Compatible Monitors:


11MAESTRO

11UNO

11TUNER

11M-LINK

11P-Link

11S-LINK


Ordering Information
Model
11UP50M-50W-W9
11UP50N-40S-W9
11UP50N-50F-W9
11UP50N-50H-W9
