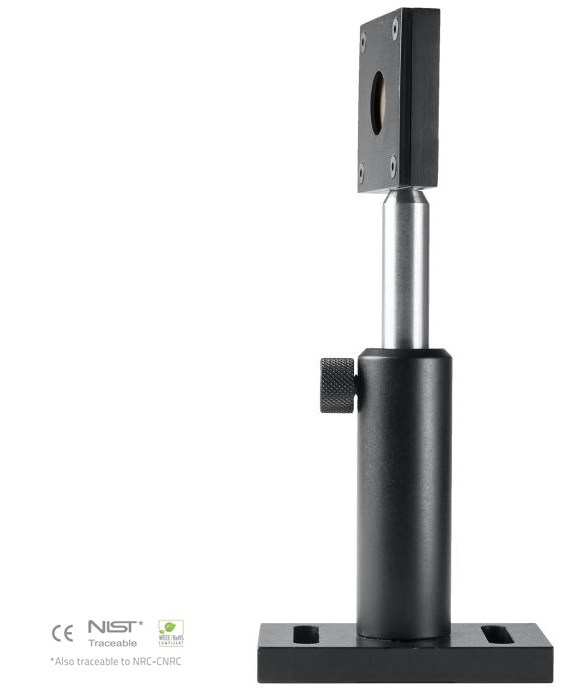

Specifications
| Model |
11UP17P-6S-H5 |
11UP17P-6S-W5 |
| MAX AVERAGE POWER CONTINUOUS / 1 MINUTE) |
6 W / 7 W |
6 W / 7 W |
| EFFECTIVE APERTURE |
17 mm Ø |
17 mm Ø |
| COOLING METHOD |
Convection |
Convection |
| MEASUREMENT CAPABILITY |
| Spectral Range * |
0.19 – 20 µm |
0.19 – 10 µm |
| Noise Equivalent Power a |
1 mW |
1 mW |
| Rise Time (nominal) b |
0.8 sec |
1.4 sec |
| Sensitivity (typ into 100 kΩ load) c |
0.6 mV/W |
0.6 mV/W |
| Calibration Uncertainty d |
±2.5 % |
±2.5 % |
| Repeatability |
±0.5 % |
±0.5 % |
| Energy Mode |
| Sensitivity |
0.7 mV/J |
0.2 mV/J |
| Maximum Measurable Energy e |
15 J |
200 J |
| Noise Equivalent Energy a |
0.02 J |
0.02 J |
| Minimum Repetition Period |
4 sec |
5 sec |
| Maximum Pulse Width |
88 ms |
133 ms |
| Accuracy with energy calibration option |
±5 % |
±5 % |
| DAMAGE THRESHOLDS |
| Maximum Average Power Density f |
36 kW/cm2 |
100 kW/cm2 |
| Pulsed Laser Damage Thresholds |
Max Energy Density |
Peak Power Density |
Max Energy Density |
Peak Power Density |
| 1064 nm, 360 µs, 5 Hz |
5 J/cm2 |
14 kW/cm2 |
100 J/cm2 |
667 kW/cm2 |
| 1064 nm, 7 ns, 10 Hz |
1 J/cm2 |
143 MW/cm2 |
1.1 J/cm2 |
157 kW/cm2 |
| 532 nm, 7 ns, 10 Hz |
0.6 J/cm2 |
86 MW/cm2 |
1.1 J/cm2 |
157 kW/cm2 |
| 266 nm, 7 ns, 10 Hz |
0.3 J/cm2 |
43 MW/cm2 |
0.7 J/cm2 |
27 kW/cm2 |
| PHYSICAL CHARACTERISTICS |
| Effective Aperture |
17 mm Ø |
17 mm Ø |
| Absorber (High Damage Threshold) |
H5 |
W5 |
| Dimensions |
46H x 46W x 10.7D mm |
46H x 46W x 10.7D mm |
| Weight (head only) |
0.1 kg |
0.1 kg | Specifications are subject to change without notice
* For the calibrated spectral range, see the user manual.
a. Nominal value, actual value depends on electrical noise in the measurement system.
b. With STANDA 11MAESTRO, 11UNO, 11P-LINK, 11TUNER and 11S-LINK monitors.
c. Maximum output voltage = sensitivity x maximum power.
d. Including linearity with power.
e. For 360 µs pulses. Higher pulse energy possible when customized for long pulses (ms), less for short pulses (ns).
f. At 1064 nm, 10 W CW.
