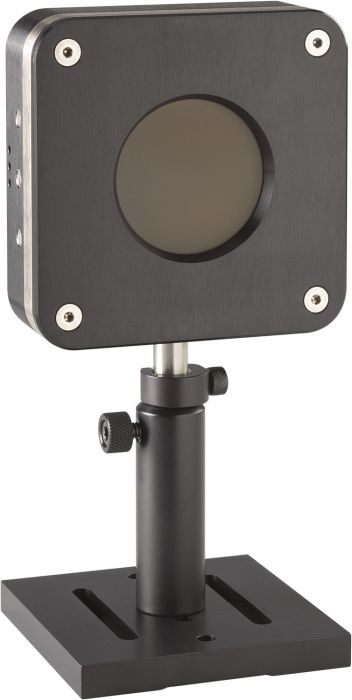

11UP55G-600F-HD

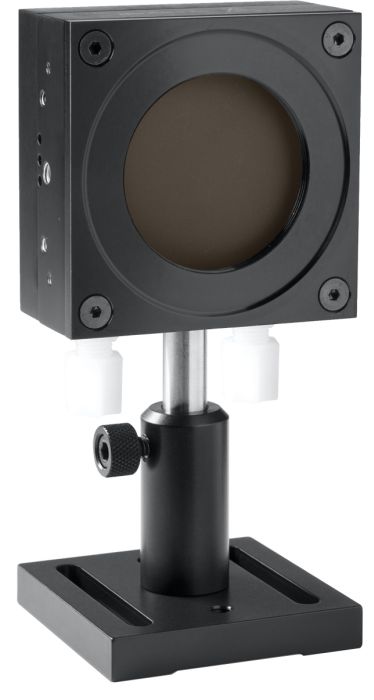

11UP55C-2.5KW-HD |
|

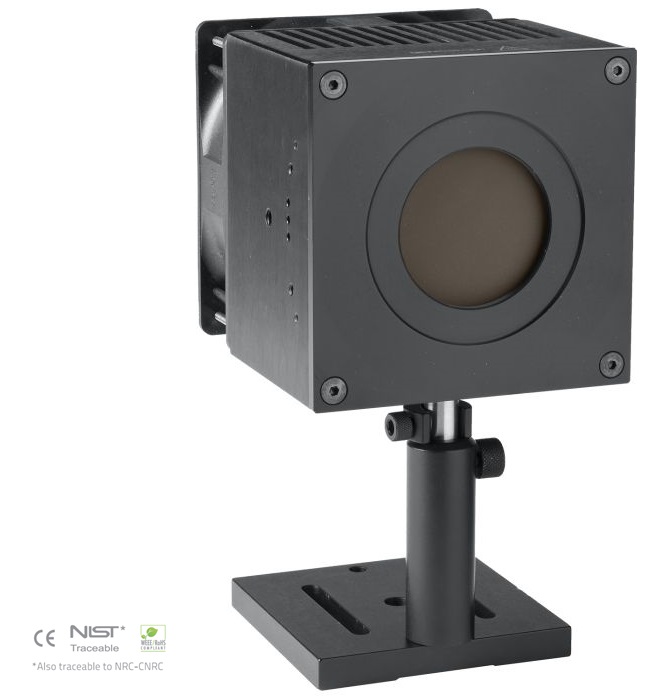

11UP55M-700W-HD |
Specifications
| Model |
11UP55G-600F-HD |
11UP55M-700W-HD |
11UP55C-2.5KW-HD |
| MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE) |
600 W / 600 W |
700 W f / 700 W |
f 2 500 W / 2 500 W |
| EFFECTIVE APERTURE |
55 mm Ø |
55 mm Ø |
55 mm Ø |
| COOLING METHOD |
Fan-Cooled |
Water-Cooled |
Water-Cooled |
| MEASUREMENT CAPABILITY |
| Spectral Range * |
0.19 – 20 µm |
0.19 – 20 µm |
0.19 – 20 µm |
| Noise Equivalent Power a |
45 mW |
45 mW |
200 mW |
| Rise Time (nominal) b |
2.8 sec |
2 sec |
3.5 sec |
| Sensitivity (typ into 100 kΩ load) c |
0.03 mV/W |
0.03 mV/W |
8 µV/W |
| Calibration Uncertainty d |
±2.5 % |
±2.5 % |
±2.5 % |
| Repeatability |
±0.5 % |
±0.5 % |
±0.5 % |
| Energy Mode |
| Sensitivity |
0.008 mV/J |
0.008 mV/J |
--- |
| Maximum Measurable Energy e |
200 J |
200 J |
--- |
| Noise Equivalent Energy a |
0.25 J |
0.25 J |
--- |
| Minimum Repetition Period |
12 sec |
12 sec |
--- |
| Maximum Pulse Width |
430 ms |
430 ms |
--- |
| Accuracy with energy calibration option |
±5 % |
±5 % |
--- |
| DAMAGE THRESHOLDS |
| Maximum Average Power Density |
| 1064 nm, 10 W, CW |
45 kW/cm2 |
45 kW/cm2 |
45 kW/cm2 |
| 1064 nm, 500 W, CW |
8 kW/cm2 |
8 kW/cm2 |
9 kW/cm2 |
| 1064 nm, 2 500 W, CW |
--- |
--- |
6 kW/cm2 |
| Pulsed Laser Damage Thresholds |
Max Energy Density |
Max Power Density |
| 1064 nm, 360 µs, 5 Hz |
9 J/cm2 |
25 kW/cm2 |
| 1064 nm, 7 ns, 10 Hz |
1 J/cm2 |
143 MW/cm2 |
| 532 nm, 7 ns, 10 Hz |
0.6 J/cm2 |
86 MW/cm2 |
| 266 nm, 7 ns, 10 Hz |
0.3 J/cm2 |
43 MW/cm2 |
| PHYSICAL CHARACTERISTICS |
| Effective Aperture |
55 mm Ø |
55 mm Ø |
55 mm Ø |
| Absorber (High Damage Threshold) |
HD |
HD |
HD |
| Dimensions |
120H x 120W x 135D mm |
89H x 89W x 40D mm |
116H x 116W x 48D mm |
| Weight (head only) |
2.75 kg |
0.90 kg |
1.95 kg | Specifications are subject to change without notice
* For the calibrated spectral range, see the user manual.
a. Nominal value, actual value depends on electrical noise in the measurement system.
b. With STANDA 11MAESTRO, 11UNO, 11P-LINK, 11TUNER and 11S-LINK monitors.
c. Maximum output voltage = sensitivity x maximum power.
d. Including linearity with power.
e. For 360 µs pulses. Higher pulse energy possible when customized for long pulses (ms), less for short pulses (ns).
f. Minimum cooling flow 1.5 liters/min, water temperature ≤ 22°C, 1/8 NPT compression fittings for 1/4 inch semi-rigid tube. Contact STANDA for clean deionized water cooling module option.
Compatible Monitors:
|
