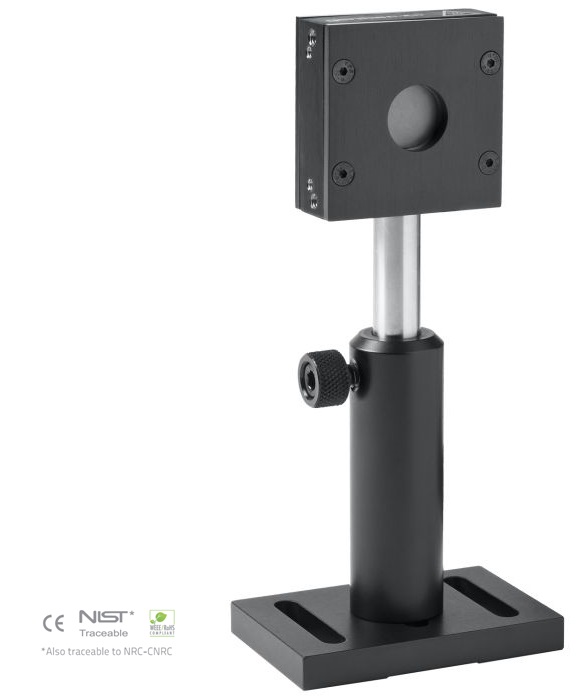

Specifications
| Model |
11UP19K-15S-VR |
11UP19K-30H-VR |
| MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE) |
15 W / 20 W |
30 W / 35 W |
| EFFECTIVE APERTURE |
18 mm Ø |
18 mm Ø |
| COOLING METHOD |
Convection |
Heatsink |
| MEASUREMENT CAPABILITY |
| Spectral Range *a |
0.3 – 2.5 µm |
0.3 – 2.5 µm |
| Noise Equivalent Power b |
2 mW |
2 mW |
| Rise Time (nominal) c |
2.5 sec |
2.5 sec |
| Sensitivity (typ into 100 k Ω load) d |
0.34 mV/W |
0.34 mV/W |
| Calibration Uncertainty e |
±2.5 % |
±2.5 % |
| Repeatability |
±0.5 % |
±0.5 % |
| Energy Mode |
| Sensitivity |
0.1 mV/J |
0.1 mV/J |
| Maximum Measurable Energy f |
40 J |
40 J |
| Noise Equivalent Energy b |
0.02 J |
0.02 J |
| Minimum Repetition Period |
4.5 sec |
4.5 sec |
| Maximum Pulse Width |
90 ms |
90 ms |
| Accuracy with energy calibration option |
±5 % |
±5 % |
| DAMAGE THRESHOLDS |
| Maximum Average Power Density g |
700 W/cm2 |
700 W/cm2 |
| Pulsed Laser Damage Thresholds |
Max Energy Density |
Peak Power Density |
| 1064 nm, 360 µs, 10 Hz |
40 J/cm2 |
111 kW/cm2 |
| 1064 nm, 7 ns, 10 Hz |
6 J/cm2 |
860 MW/cm2 |
| 532 nm, 7 ns, 10 Hz |
4 J/cm2 |
570 MW/cm2 |
| 266 nm, 7 ns, 10 Hz |
1 J/cm2 |
143 MW/cm2 |
| PHYSICAL CHARACTERISTICS |
| Effective Aperture |
18 mm Ø |
18 mm Ø |
| Absorber (Volume Absorber) |
VR |
VR |
| Dimensions |
50H x 50W x 20.6D mm |
50H x 50W x 56.3D mm |
| Weight (head only) |
0.16 kg |
0.21 kg | Specifications are subject to change without notice
* For the calibrated spectral range, see the user manual.
a. Adjustment multipliers for wavelengths under 300 nm are not traceable.
b. Nominal value, actual value depends on electrical noise in the measurement system.
c. With STANDA 11MAESTRO, 11UNO, 11P-LINK, 11TUNER and 11S-LINK monitors.
d. Maximum output voltage = sensitivity x maximum power.
e. Including linearity with power.
f. For 360 µs pulses. Higher pulse energy possible when customized for long pulses (ms), less for short pulses (ns).
g. At 1064 nm, 10 W CW.
