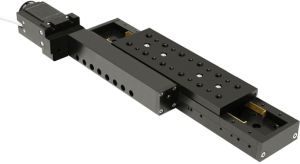

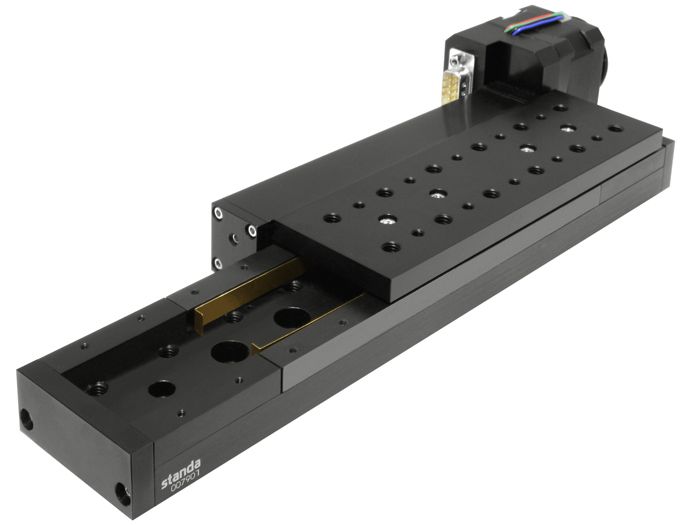

Specifications |
 |
Travel range |  | 100 mm
|
 |
 |
 |
Lead screw pitch |  | 0.5 mm
|
 |
 |
 |
Resolution in full step |  | 1 μm
|
 |
 |
 |
 | in 1/8 step |  | 0.125 μm
|
 |
 |
 |
Reduction motor/screw |  | 2.5:1
|
 |
 |
 |
Max. speed* |  | 5 mm/s
|
 |
 |
 |
Load capacity |  |
|
 |
 |
 |
 | Horizontal |  | 8 kg
|
 |
 |
 |
 | Vertical |  | 3 kg
|
 |
 |
 |
Motor connector |  | DB9(M)
|
 |
 |
 |
Stepper motor |  | 4247
|
 |
 |
 |
Weight |  | 1.5 kg
|
 |
 |
 |
Assemblies: |  |
|
 |
 |
 |
 | X-Y |  | directly
|
 |
 |
 |
 | Z |  | 2AB175
|
 |
 |
 |
Recommended controller |  | 8SMC5-USB
|
 |
 |
 |
Mechanical end limit switches |  | 2
|
 |
 |
 |
 | Switch polarity |  | pushed is closed |
 |
 |
 |
|
 |
 |
 |
Product added to the Wishlist
Ordering Information |
 |
Model |
 |
Stepper Motor |
 |
Motor connector |
 |
|
 |
 |
 |
 |
8MT177-100 |
 |
4247 |
 |
DB9(M) |
 |
|
 |
 |
 |
8MT177-100XY |
 |
4247 |
 |
DB9(M) |
 |
|
 |
 |
 |
8MT177-100XYZ |
 |
4247 |
 |
DB9(M) |
 |
|
 |
 |
 |
8MT177-100-28 |
 |
28 |
 |
HDB15(M) |
 |
|
 |
 |
 |
8MT177-100-28XY |
 |
28 |
 |
HDB15(M) |
 |
|
 |
 |
 |
8MT177-100-28XYZ |
 |
28 |
 |
HDB15(M) |
 |
|
 |
 |
 |
|
|
