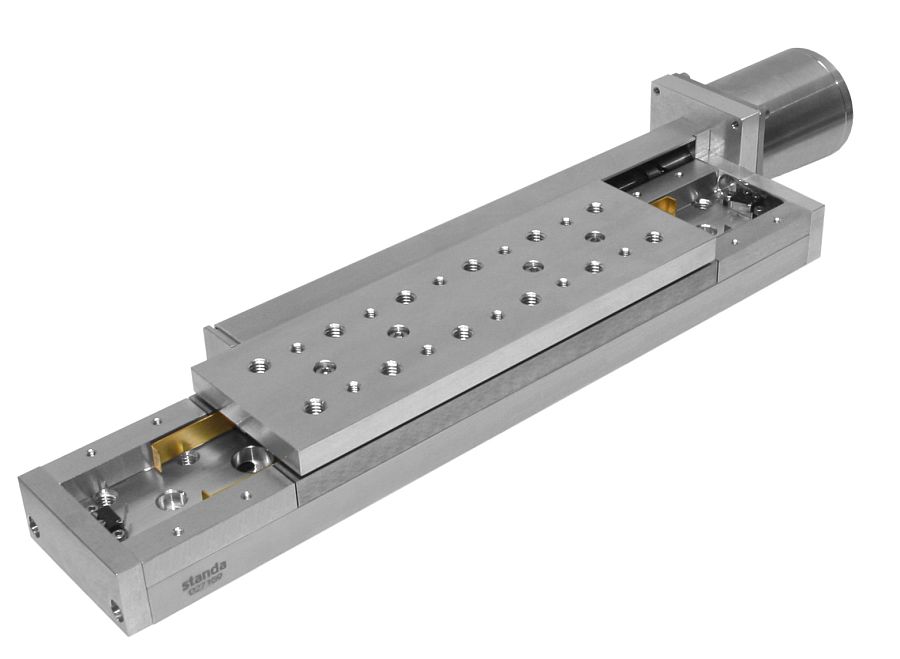

8MT175V - Vacuum Compatible Motorized Stages
Vacuum Compatible Motorized Stages
Zoom in
Printable version
View drawings
Download 3D

Compact design

Resolution 0.31 µm (1/8 step)

High guide way accuracy

Lead screw pitch 0.5 mm

X-Y-Z configurations available

Non vacuum version

Vacuum compatible Motorized Stages are equipped with vacuum compatible stepper motor. Stages stack in X-Y configurations directly using M6 screws. Angle Bracket 2AB175V is used to mount stages for vertical translation; it is also used for X-Y-Z configurations. To mount stages on a flat surface you will need 3UBP175V base plate.

High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.

XYZ assembly

Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.

Lead screw pitch0.5 mm
Resolution in full step2.5 µm
Max. speed5 mm/s
Load capacity
Horizontal8 kg
Vertical3 kg
Vacuum, Torr10-6
Motor connectorDB9(M)
Stepper motorVSS42
To flat surface3BP175V
Recommended controllers8SMC5-USB
TypePushed is "closed"
Ordering Information
Model Travel range, mm Weight, kg
8MT175V-100-VSS42 100 1.5
8MT175V-150-VSS42 150 1.5
8MT175V-200-VSS42 200 1.6
8MT175V-50-VSS42 50 1
2AB175V - 0.45
3UBP175V - 0.3
