5KVDOM-05 - Kinematic Vertical Drive Optical Mount
Kinematic Vertical Drive Optical Mount
Zoom in
Printable version
View drawings
Download 3D
For Ø12.7 mm (0.5 inch) optics
Stainless steel
Compact/robust design
Lockable adjustment screws
Fine screws pitch 0.25 mm (101,6 TPI)
Vacuum compatible versions of 5KVDOM series


Kinematic Vertical Drive Optical Mount 5KVDOM-05 is designed to minimize mount-induced wavefront distortions. In conventional mounts, the mirror is tightened by a side screw. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. Uniformly distributed axial forces eliminate wavefront distortion. This mount is ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability. A fixing screw secures the optics against contact lines, which make 2 contact points. To prevent damage to the optics, tip of the fixing screw is made of plastic.

Vertical drive optical mount fixed with screw

Optics secured in double-bored hole with nylon setscrew. For any thickness optics.

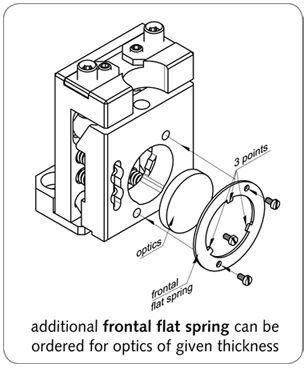

Vertical drive optical mount fixed with flat spring

Fixed with 3 spots by a flat spring. Only for 5 mm thickness optics.
Frontal flat spring 5A-VDOM-05-FS1 is not included into standard package, make sure to order it separately if needed.

Kinematic Vertical Drive Optical Mount series

0.5" optics

1" optics

2" optics

3" optics

Related products
Off-Axis Parabolic Mirrors Dielectric Coated Optics Metallic Coated Optics

Fine Screw threadM4x0.25
Optics Diameter0.5" (12.7 mm)
Clear Aperture11.4 mm
Tilt/Tip range ±2.5°
Sensitivity 2 arcsec
LockingBoth axes
MaterialStainless Steel
Weight 0.1 kg
Ordering Information
Model Description Price Availability
5KVDOM-05 Kinematic Optical Mount
for Ø0.5" (12.7 mm) Optics
€ 216.70 2-3 weeks
5A-VDOM-05-FS1 Frontal Flat Spring
(2 fixing screws included)
€ 21.50 today
* - 5A-VDOM-05-FS1 previously was named 5KVDOM-05.10.
All available 5KVDOM series optics diameters range (for 0.5, 1, 1.5, 2, 3, 4 inch optics)
