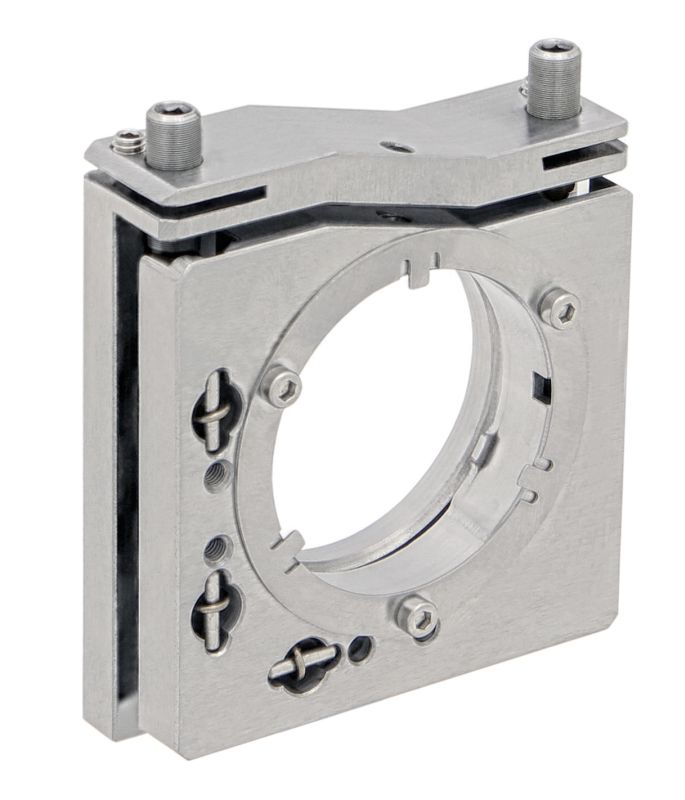

5KVDOM-1.5, 5VDOM-1.5 - Vertical Drive Optical Mount
Vertical Drive Optical Mount
Zoom in
Printable version
View drawings
Download 3D
1.5" optic diameter

Stainless steel

Annealed front panel

Compact/robust design

Super stable with flat spring

Lockable adjustment screws

Fine screws pitch 0,25 mm (101,6 TPI)

Vacuum compatible version is available on request

Motorised version on request


5VDOM-1.5
L-shaped spring
5KVDOM-1.5
spiral spring

Vertical drive Optical mount is manufactured in four modifications: 5VDOM-1.5 with flat L-form spring. 5KVDOM-1.5 with spiral springs, additionally both are offered with either frontal flat spring ring or three plastic washers to secure optics.

Ultra-stable Kinematic Mirror Mounts 5KVDOM-1.5 are designed to minimize mount-induced wavefront distortions. In conventional mounts, the mirror is tightened by a side screw. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. 5KVDOM-1.5 mirror mounts use secure 3-points mirror suspension in between frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion.

Due thermal processes on optic holding part, all metal inner tensions were removed and part makes none micro movements.

These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.


5KVDOM-1.5 Optics fixed with 3 spots on flat spring.
For 8±0.2 mm thickness optics.

5KVDOM-1.5W Optics fixed with 3 spots by plastic washers.
For 8±0.2 mm thickness optics.



3BPVDOM Universal Base Plate is designed for attaching Vertical Drive Optical Mounts 5KVDOM-1.5 and 5VDOM-1.5 to STANDA optical tables or to another stages.


Vertical Drive Optical Mount series

5KVDOM-05
0.5" optics

5KVDOM-1
1" optics

5KVDOM-2
2" optics

5KVDOM-3
3" optics



Related products

Off-Axis Parabolic Mirrors Dielectric Coated Optics Metallic Coated Optics


Specifications
Fine screw threadM6x0.25
Optics diameter1.5"
Tip/tilt range±2.5°
Sensitivity2 arcsec
LockingBoth axes
Weight0,3 kg
Ordering Information
Model Price
5KVDOM-1.5 € 348.00
5KVDOM-1.5W € 348.00
5VDOM-1.5 € 368.00
5VDOM-1.5W € 368.00
3BPVDOM € 43.00
5A-VDOM-1.5-FS1
5A-VDOM-1.5-6.35
5A-VDOM-1.5-9.5
