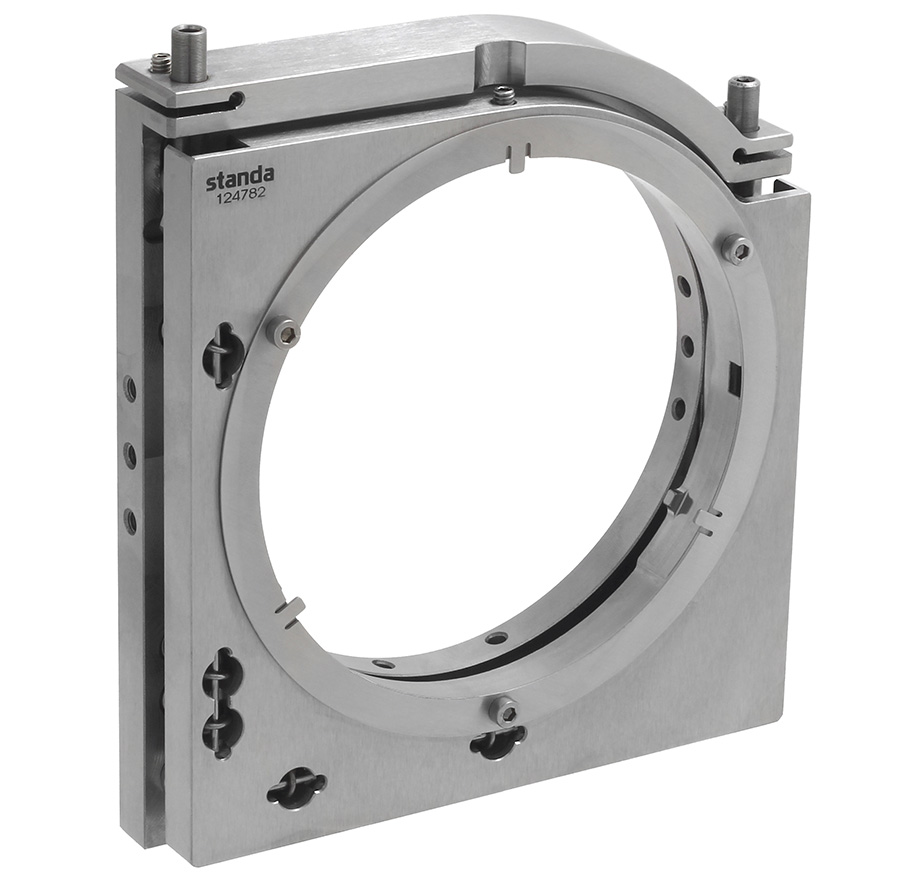

5KVDOM-4 - Kinematic Super Stable Optical Mirror Mount
Kinematic Super Stable Optical Mirror Mount
Zoom in
Printable version
View drawings
Download 3D
4" (101.6 mm) optic diameter

Stainless steel

Annealed front panel

Compact/robust design

Super stable

Lockable adjustment screws

Vacuum compatible version is available on request


Ultra-stable Kinematic Mirror Mounts 5KVDOM-4 are designed to minimize mount-induced wavefront distortions. In conventional mounts, the mirror is tightened by a side screw. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. 5KVDOM-4 mirror mounts use secure 3-points mirror suspension in between frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion.

Due thermal processes on optic holding part, all metal inner tensions were removed and part makes none micro movements.

These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.

Optics secured in double-bored hole with nylon setscrew. For any thickness optics. Fixed with 3 spots on flat spring.
For 8±0.2 mm thickness optics.

If you have optics which thickness is 20 mm, we recommend additional supporting adapter 5KVDOM-4-20/12. Custom thickness adapters available on request.

3BPVDOM Universal Base Plate
is designed for attaching Vertical Drive Optical Mounts of series 5KVDOM to optical tables or to another stages.

Kinematic Super Stable Optical Mirror Mounts series

All available 5KVDOM series optics diameters range (for 0.5, 1, 1.5, 2, 3, 4 inch optics)
View bigger

0.5" optics

1" optics

2" optics

3" optics

You can watch 1" and 2" motorized mounts in action on our youtube channel.

Related products
Off-Axis Parabolic Mirrors Dielectric Coated Optics Metallic Coated Optics

Fine screw threadM6x0.25
Optics diameter4"
Tip/tilt range±1.5
Sensitivity2 arcsec
LockingBoth axes
5KVDOM-41.33 kg
5A-VDOM-4-200.24 kg
Ordering Information
Model Description Price Availability

Optical mirror mount
for 4" (101,6 mm) optics

€ 649.00 2-3 weeks

Universal base plate

€ 43.00 today

Supporting adapter
for 20 mm thickness optics

€ 107.00 2 weeks

Custom thickness
supporting adapter

request 1 week
