SDH-I - High-Aperture Compact Spectrometers

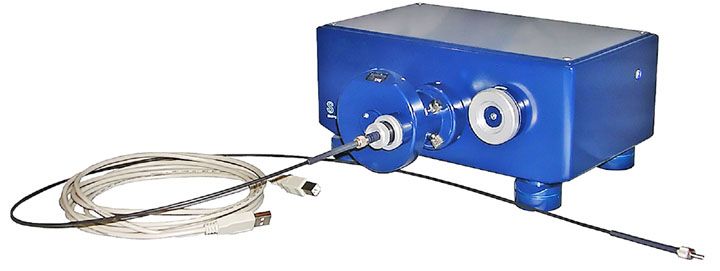

High-Aperture Compact Spectrometers
Zoom in
Printable version
High resolution – up to 0.06 nm
High throughput – F/Number of 4.4
Multiple choice of methods for input of analyzed radiation to the spectrometer
Selection of resolution and spectral range at the stage of ordering
Control and powering from the computer via USB-cable
Friendly interface compatible with Windows 98/ME/2000/XP



High-aperture compact spectrometers of the SDH-series are available in two versions: SDH-I model containing one fixed diffraction grating and SDH-IV model with a 4-position manually switchable diffraction gratings turret.

All the spectrometers are equipped with an eight-position filter turret for cutting higher spectrum orders (manual switching), a quartz two-lens condenser f=16mm and optical fiber with the SMA-905 adapter, thus providing users with a possibility of selecting the most convenient method of delivering analyzed radiation to the spectrometer.
The below specifications of the SDH-IV spectrometer contain recommended variants of diffraction gratings/multi-channel detectors combination for the most popular spectral ranges.

Focal length, mm 150
F/Number 1: 4.4
Entrance slit, mm 0.016 x 3 1) or 0.04 x 3 2) 3) or 0.08 x 3 4)
Computer interface Full-Speed or High-Speed USB 4)
Overal size, weight (242 x 280 x 113) mm; 4.85 kg
SDH-I Spectrometer
Diffraction grating, lines/mm 300 400 600 1200 1800 100
Spectral range, nm 200-1100 200-1100 200-1100 200-1000 200-650 800-1700 3)
Width of the concurrently measured spectral range (average), nm 620 1)
540 2)
460 1)
400 2)
300 1)
260 2)
130 1)
110 2)
80 1)
75 2)830 3)
Reciprocal linear dispersion (average), nm/mm 21.3 15.8 10.2 4.0 3.0 65
Spectral resolution (FWHM, average), nm 0.42 1)
1.3 2)
0.32 1)
1.0 2)
0.22 1)
0.65 2)
0.09 1)
0.3 2)
0.06 1)
0.2 2)
4.0 3)
SDH-IV Spectrometer
Spectral range 5), nm 200-1100 200-1100 800-1700
Linear image sensor TCD1304 S8378-1024 G9212-512S - G9214-512S
Active area 29.1mm, 3648 pixels 8mkm x 0.2mm 25.6mm, 1024 pixels 25mkm x 0.5mm 12.8mm, 512 pixels 25mkm x 0.5mm (0.25mm)
Diffraction gratings, lines/mm 900 600 400 300 900 600 400 300 100 400 300 200
Detectable spectral range, nm 190-390 300-600 450-905 600-1140 200-380 300-570 450-855 600-1140 870-1700 900-1100 1065-1330 1295-1700
Reciprocal linear dispersion (average),
nm/mm
nm/pixel

7.0
0.056

10.5
0.084

15.8
0.126

21.1
0.17

7.0
0.175

10.5
0.26

15.8
0.4

21.1
0.53

65
1.62

15.5
0.39

20.9
0.52

31.7
0.79
Spectral resolution (FWHM, average), nm 0.18 0.28 0.42 0.54 0.44 0.65 1.0 1.3 4.5 0.95 1.3 2.0

Specifications are subject to change without notice
1) for 29.1mm long linear image sensor with pixel size of 8 μm
2) for 25.6mm long linear image sensor with pixel size of 25 μm
3) for 12.8mm long linear image sensor with pixel size of 25 μm
4) for 12.8mm long linear image sensor with pixel size of 50 μm
5) for obtaining spectral parameters differing from the above, diffraction gratings with a different quantity of lines per mm can be used.

Ordering Information
Model
SDH-I
SDH-IV
