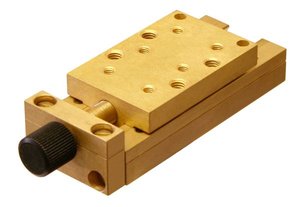

7T34NM-20 - Non-Magnetic Linear Translation Stage
Non-Magnetic Linear Translation Stage
Zoom in
Printable version
View drawings
Download 3D
Precision non-magnetic linear translation stage
Easy and fast XY or XYZ direct assembling
In the construction of that stage only non-magnetic
materials are used (brass, bronze, aluminium)


7T34NM-20-XY
You may stack the stages for XY applications directly only using two non-magnetic M3 screws
7T34NM-20-XYZ
For quick YZ assembly stages may be stacked using two non-magnetic M2.5 screws
7T34NM-20-XYZ
Angle bracket 2AB34-20 allows to stabilize stack the stages for YZ motion

Fine screws of non-magnetic linear translation stages have pitch of 0,5 mm. Important feature of 7T34NM-20 non-magnetic translation stages is that they could be assembled into XY or XYZ configuration directly, without using addition elements. For assembling 2 or 3 axis system pair of non-magnetic fixing screws per additional axis is needed. Such screws could be ordered from us. OEM non-magnetic translation stages versions available.



Specifications
Travel range20mm
Sensitivity5µm
Screw backslash0.02 mm
Load capacity:
Horizontal2 kg
Vertical1 kg
Assemblies
XYdirectly
XYZ2AB34-20
Weight0.19 kg
Ordering Information
Model Description Price Availability
7T34NM-20 Non-Magnetic Translation Stage € 362.00 today
7T34NM-20-XY Non-Magnetic XY Translation Stage € 724.00 today
7T34NM-20-XYZ Non-Magnetic XYZ Translation Stage,
includes angle bracket
€ 1140.00 today
2AB34-20 Non-Magnetic Angle Bracket € 54.00 today
3BP34-20 Non-Magnetic Base Plate € 32.00 today
