7R170V-190 - Vacuum Compatible Rotation Stage
Vacuum Compatible Rotation Stage
Zoom in
Printable version
View drawings
Non-vacuum version

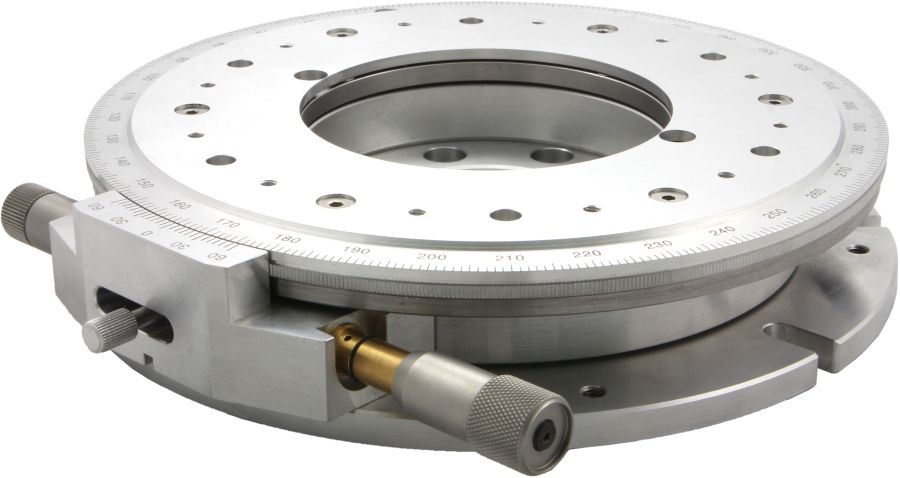

Vacuum Compatible Rotation Stage 7R170V-190 is used to rotate manually large optical and other components through continuous 360° with accuracy of 1°, and finely to adjust them within 10° by a micrometer, with accuracy of 0.5arcmin. The stage has 88.9 mm clear aperture. The platform of the stage has a pattern of M6 and M4 mounting holes for components.

Designed for Torr 10-6 vacuum.

Specifications
Rotation range
coarse360°
fine10°
Reading accuracy0.5arcmin
Sensitivity0.1arcmin
Wobble1arcmin
Load capacity
Horizontal60 kg
MaterialAluminium
Weight3 kg
Ordering Information
Model
7R170V-190
