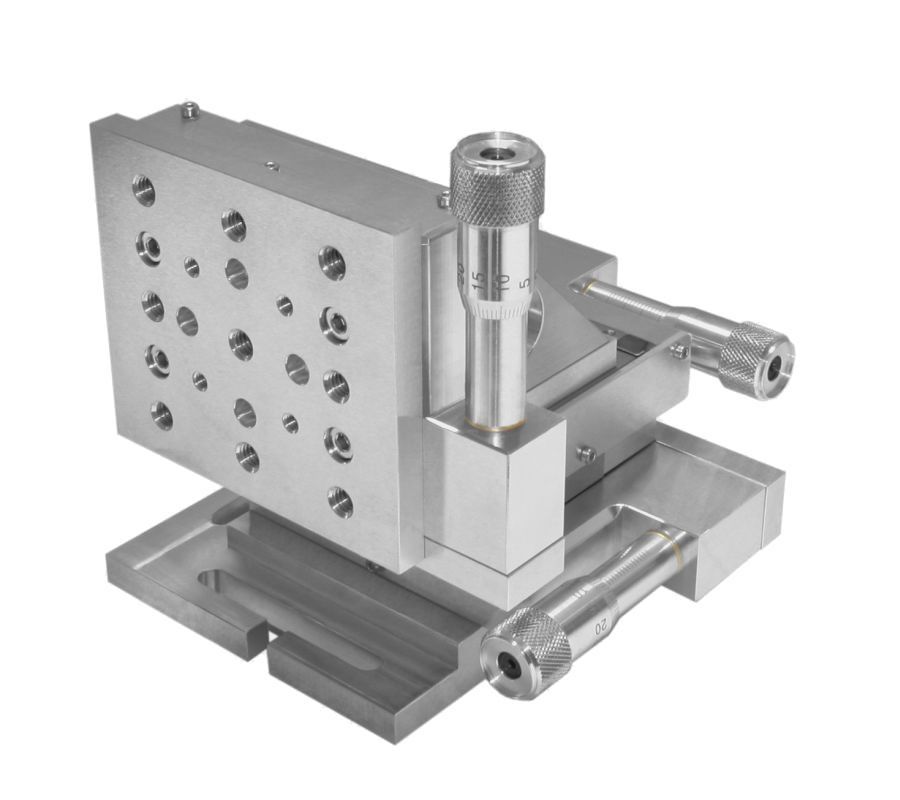

7T38V XYZ - Vacuum Compatible Translation System
Vacuum Compatible Translation System
Zoom in
Printable version
View drawings
Micrometer drive

High sensitivity

15mm travel in X, Y and Z axis

Non vacuum version




Specifications
Travel range15 mm
Sensitivity1 µm
Tracking accuracy2 µm
Scale graduation10 µm
Load capacity5 kg
Weight1.35 kg
Ordering Information
Model
7T38VXYZ metric
7T38EVXYZ imperial
