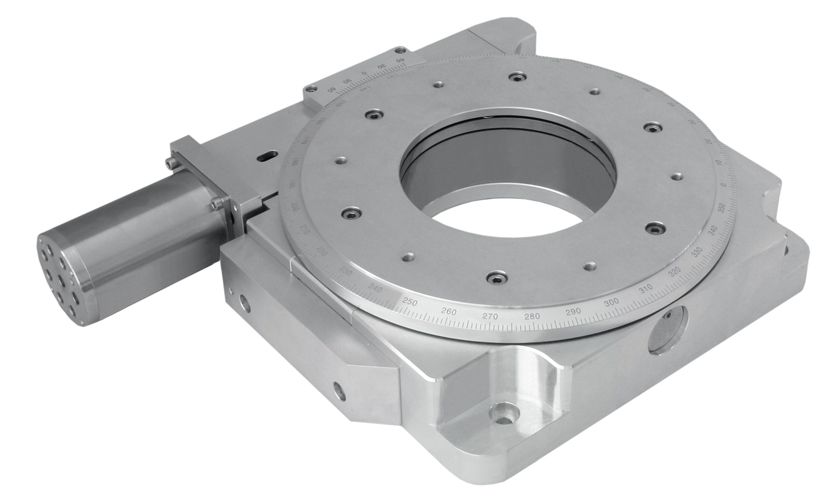

8MR190V-90 - Large Vacuum Compatible Motorized Rotation Stage
Large Vacuum Compatible Motorized Rotation Stage
Zoom in
Printable version
View drawings
Download 3D
Hardened steel with aluminium body
Large diameter ball bearings
Worm Gear Ratio is 1:120
Hall-effect reference limit switch
Stepper motor or DC motor with encoder
Motor can be optionally equipped with the reduction gear
Vacuum 10-6Torr
Very high load capacity
Non-vacuum version


Learn more about non-vacuum version here

*Test condition: STANDA controllers; Power supply – 36V.

High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Travel Range360° continuous
Resolution
in full step* 54 arcsec.
in 1/8 step* 6,75 arcsec.
Repeatability (bidirectional) 72 arcsec.
Backlash 40 arcsec. max
Maximum Speed*4 turn/min.
Wobble40 µRa
Cable2m length, non-vacuum
MotorHDB15(M) (wiring diagram)
Stepper motorVSS43
Load Capacity
Horizontal40 kg
Radial20 kg
Weight5,7 kg
Recommended controllers8SMC5-USB
Hall home reference switch1, pushed is "closed"
Ordering Information
Model
8MR190V-90-VSS43
8MR190V-90-VSS42G6
