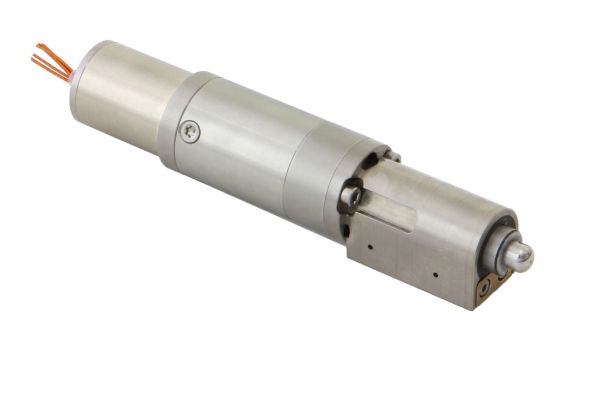

8MAV - Vacuum Compatible Motorized Actuator
Vacuum Compatible Motorized Actuator
Zoom in
Printable version
View drawings
Low weight
Miniature size
High resolution
Up to 10-6 vacuum
Optional version for use in space



High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Travel range
8MAV-88 mm
8MAV-1616 mm
Resolution in full step0,051 μm
Lead screw pitch0,5 mm
Reduction motor-reduction gear49:1
Maximum speed0,102 mm/s
Maximum force150 N
Vacuum compatible cableintegrated, 0,6 m length
Motor connector (for testing)HDB15(M)
Vacuum compatible stepper motorVSS19
Limit switches none
Weight
8MAV-80,155 kg
8MAV-160,2 kg
Recommended controllers8SMC5-USB
Ordering Information
Model
8MAV-16
8MAV-8
