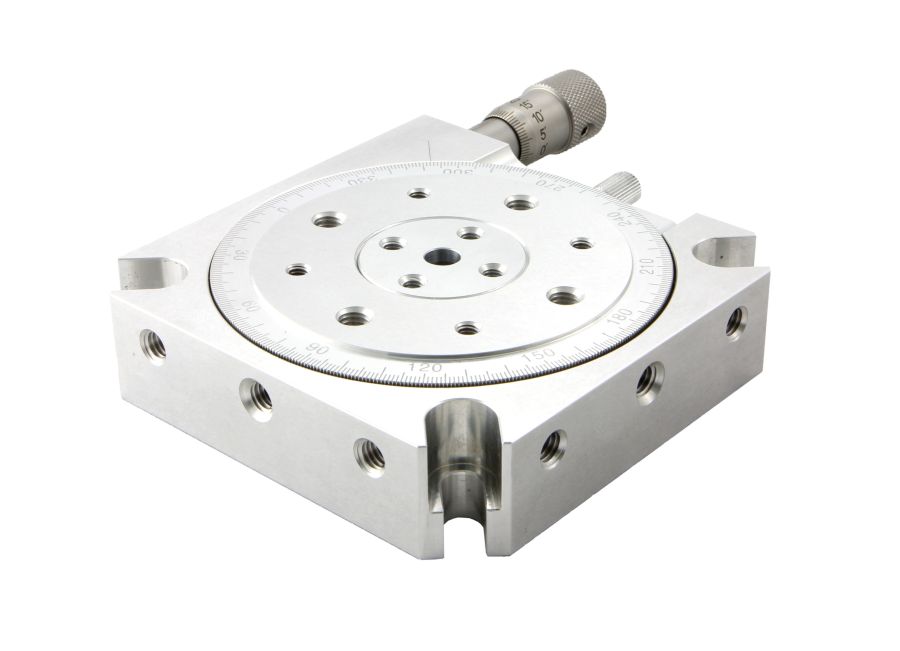

7R129V - Vacuum Compatible Precision Rotary Stage
Vacuum Compatible Precision Rotary Stage
Zoom in
Printable version
View drawings
Centered platform insert
M30x1 diameter platform insert
Two 25 mm (1 Inch) retaining rings
Non-vacuum version



We offer you a Vacuum Compatible Precision Rotary Stage 7R129 with a micrometer screw. Fine motion range is 15° with resolution of 1 arcmin. For coarse adjustment release the fixing screw and turn the platform. The platform has mounting holes M6, M4. Precision rotary stage has an aperture M30x1 with clear aperture of 25 mm. Two retaining rings with 1 inch clear aperture are included. To close the platform's aperture you can thread in an insert platform (included) with a centered clearance hole and M6, M4 holes. Precision rotary stage can be fastened horizontally and vertically using M6 screws.

Short video demonstration where rotation stage is used as a part of goniometric system:





Specifications
Rotation range
coarse360°, resolution 1°
fine15°, resoliution 1arcmin
Sensitivity20arcsec
Reading accuracy1arcmin
Wobble1arcmin
Load capacity
horizontal12kg
vertical5kg
Max drive torque0.3kgm
Weight0.63kg
Ordering Information
Model
7R129V
