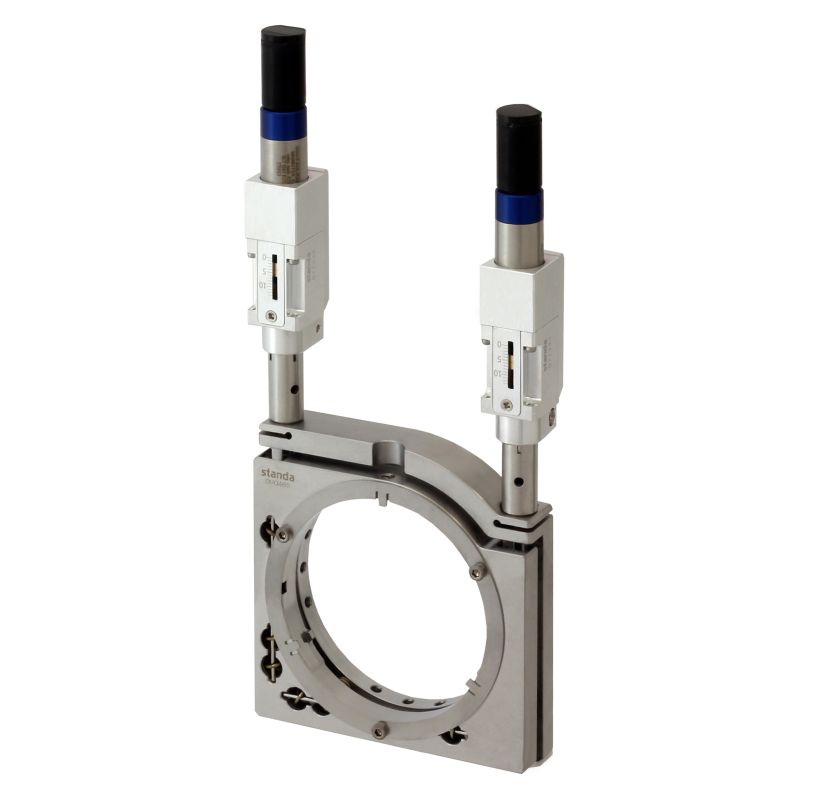

Vacuum Compatible Motorized Vertical Drive Mirror Mounts with DC motor 8MKVDOMV-3 are designed to minimize mount-induced wavefront distortions. In conventional mounts, a side screw tightens the mirror. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. 8MKVDOMV-3 mirror mounts use secure 3-points mirror suspension in between frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion. Due thermal processes on optic holding part, all metal inner tensions were removed and part makes none micro movements. These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.
|Conventional optics mounting with plastic tip fixing screw from side.
||Fixed with 3 spots on flat spring. Only for 8 mm thickness optics.|
If you have optics which thickness is 12,7 mm, we recommend Optical Mount with Supporting Adapter.
3BPVDOM Universal Base Plate is designed for attaching Vacuum Compatible Motorized Vertical Drive Mirror Mount with DC motor 8MKVDOMV-32 and to STANDA optical tables or to another stages.
Vertical Drive Optical Mount series
High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.
|Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy
Connectors of other sizes and vacuum feedthroughs are available on request.
