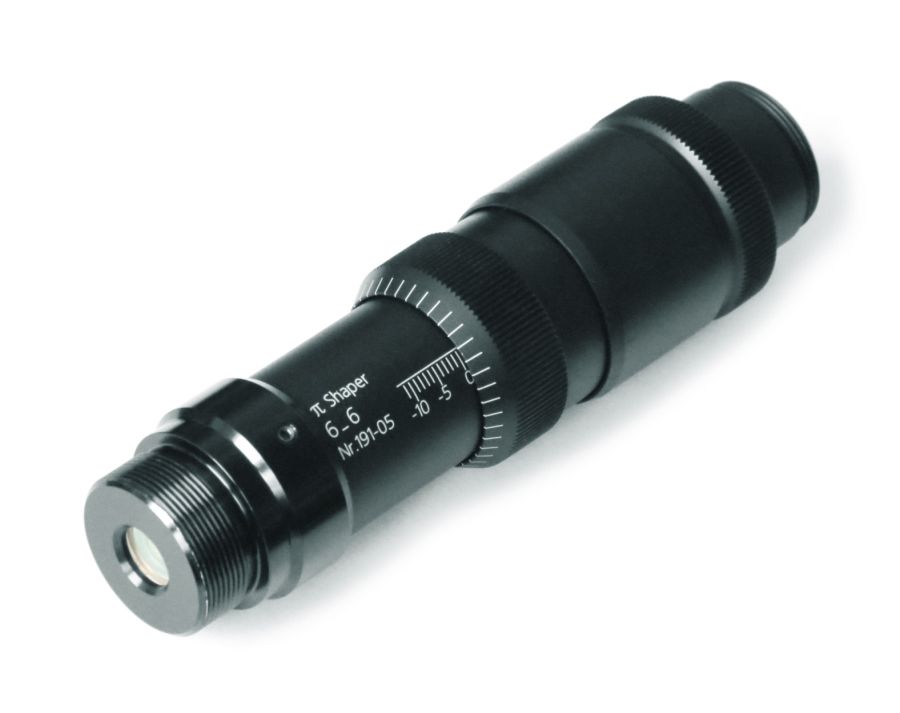

10PS6_6 - Beam Profile Shaper
Beam Profile Shaper
Zoom in
Printable version
View drawings
Extremely efficient
Achromatic for design wavelengths
Compact design suitable for scientific and industrial applications
Long working distance



Using these unique tools it is possible to convert a single mode or multimode laser beam of similar to Gaussian intensity profile into a collimated Flattop beam with nearly 100% efficiency. Proved achromatic design of 10PS6/6 series Beam Profile Shaper systems makes them a versatile solution for applications based on lasers of NIR (near infrared), Visual and UV-spectrum. Almost the same effective sizes of input and output beams let the Beam Profile Shaper be integrated in your application easily.

•   Welding of metals and plastics
•   Flow Cytometry
•   SLM illumination
•   Holography
•   Marking and engraving
•   Material micromachining
•   Particle Image Velocimetry
•   Particle size analysing
•   Laser ablation
•   Laser annealing


Common specifications
Type Telescope of Galilean type (without internal focus)
Input beam - Collimated
- TEM00 or multimode with Gaussian or similar intensity profile
Output beam - Collimated
- Flat-top (uniformity within 5%)
- High edge steepness
Overall dimensions - Diameter <39 mm
- Length <143 mm
Mounting M27x1
Weight <250 g



Ordering Information
Model Input beam diameter (1/e2), mm Ouput beam diameter (FWHM), mm Optimum wavelength range Design wavelengths Applications based on
10PS6_6@1064 6.4 - 6.5 6.1 1020 - 1100 nm 1064 nm (Nd:YAG); 632.8 nm (He-Ne) Nd:YAG, Fiber and other near IR-lasers
10PS6_6@1319 5.9 - 6.0 6.0 1200 - 1400 nm 1064 nm; 1319 nm near IR Lasers
10PS6_6@1550 6.4 - 6.5 6.2 1500 - 1600 nm 1064 nm; 1550 nm near IR Lasers
10PS6_6@1650 5.9 - 6.0 6.0 1550 - 1750 nm 1064 nm; 1650 nm near IR Lasers
10PS6_6@1900-2800 6.1 - 6.2 6.4 1900 - 2800 nm 2050 nm mid-IR Lasers
10PS6_6@1940 5.9 - 6.0 6.0 1800 - 2050 nm 1940 nm near IR Lasers
10PS6_6@2050 6.4 - 6.5 6.4 1940 - 2160 nm 2050 nm mid-IR Lasers
10PS6_6@213 6.3 - 6.4 5.2 206 - 220 nm 213 nm 5th (213) Harmonics of Nd:YAG laser
10PS6_6@266 6.3 - 6.4 5.2 250 - 275 nm 266 nm 4th (266) Harmonics of Nd:YAG laser
10PS6_6@325 6.3 - 6.4 5.6 305 - 345 nm 325 nm UV lasers
10PS6_6@350 6.3 - 6.4 5.6 330 - 380 nm 355 nm 3rd (355) Harmonics of Nd:YAG laser
10PS6_6@532 6.3 - 6.4 5.8 520 - 550 nm 532 nm 2nd Harmonics Nd:YAG similar laser
10PS6_6@532+1064 5.9 - 6.0 6.0 520 - 550 nm; 1020 - 1100 nm 1064 nm (Nd:YAG); 632.8 nm (He-Ne) 1st (1064) and 2nd (532) Harmonics of Nd:YAG laser
10PS6_6@852 5.9 - 6.0 6.0 800 - 900 nm 1064 nm (Nd:YAG); 852 nm (Ti:Sapphire) Ti:Sapphire laser and other near IR lasers
10PS6_6@NIR 5.9 - 6.0 6.0 1100 - 1700 nm 1319 nm; 1650 nm (Laser Diode) near IR Lasers
10PS6_6@NUV 5.9 - 6.0 6.0 335 - 560 nm 355 nm (He-Cd); 532 nm (He-Ne) 2nd (532), 3rd (355) Harmonics of Nd:YAG laser, UV and Violet lasers
10PS6_6@TiS 5.9 - 6.0 6.0 700 - 900 nm 1064 nm (Nd:YAG); 632.8 nm (He-Ne) Ti:Sapphire laser and other near IR lasers
10PS6_6@VIS 5.9 - 6.0 6.0 405 - 680 nm 442 nm (He-Cd); 632.8 nm (He-Ne) He-Ne, He-Cd and other lasers of visual range
10PS6_6@xTiS 5.9 - 6.0 6.0 750 - 1100 nm 1064 nm (Nd:YAG), 632.8 nm (He-Ne) Ti:Sapphire laser and other near IR lasers
