5KOM4V-1 - Vacuum compatible Five-Axis Optical Mounts
Vacuum compatible Five-Axis Optical Mounts
Zoom in
Printable version
View drawings

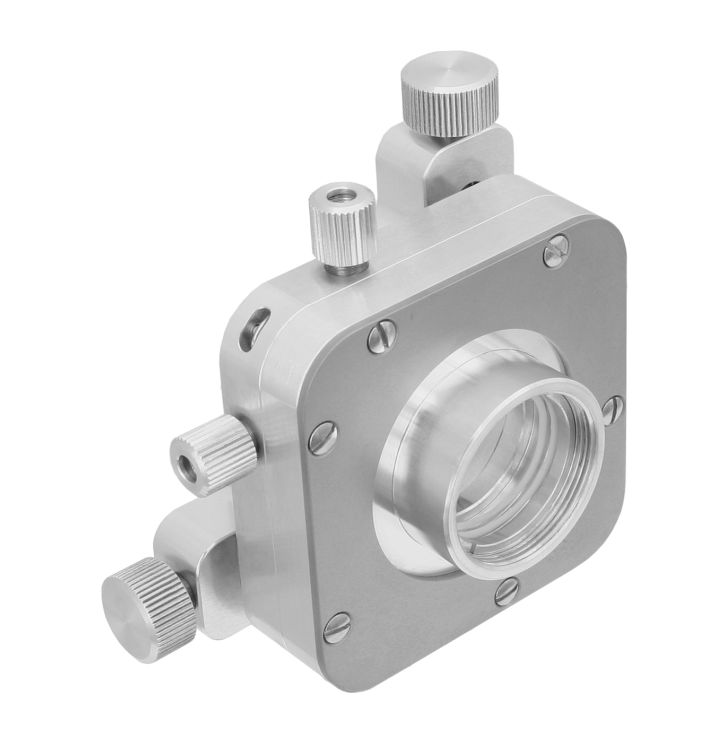

Five-axis Optical Mount
Five-axis mounts considered as combination of:
+ Redesigned Side Drive Kinematic Optical Mount...
+ Y-Z Translation Optical Mount...
+ Optical Zoom option
Non-vacuum version



Five-Axis Optical Mounts consist of:

- Side regulation two-axis kinematic mirror mount with two screws (thread pitch 250 µm (100TPI))

- Two-axis translation stage with 2mm travel range driven by two screws (thread pitch 250 µm (100TPI))

- Zoom which provides 10mm travel range

Five-Axis Optical Mounts hold 1-inch optics. In addition, the adapters may be purchased to mount optics of different diameters. Five-Axis Optical Mounts have M6 holes on the bottom to accommodate different mounting systems directly or through thread adapters.

Vacuum compatible five-axis optical mounts could be provided on request.







Specifications
Fine screw threadM6x0.25
Optics diameterØ25.4mm
Tilt/tip range±2°
screw thread pitch 250µm (100TPI)
Sensitivity3arcsec
XY translation range±2 mm
screw thread pitch 250 µm (100TPI)
Sensitivity for XY translation1µm
Sensitivity for Z translation1µm
Z translation range10mm
Materialsaluminium
stainless steel
Weight0.28 kg
Ordering Information
Model
5KOM4V-1





Cant find what you want? Not a problem! Browse our standard sections and order a vacuum modification of standard piece using this form!

   For Angle Brackets, Rails and Carriers visit our Brackets & Rails section

   For Baseplates, Posts and Various mounting equipment visit our Base Mounts & Accessories section

   For Self-centering and simple yet convenient optics holders visit our Optical Mounts section

   For large selection of precise Optical Positioners visit our Optical Positioners section

   For Platforms and Base Positioners visit our Base Positioners section

   For full list of manual translation and rotation stages visit our Translation & Rotation stages section

   For full list of motorized translation and rotation stages visit our Motorized Positioners & Controllers section

   For Fine Screws and Micrometers visit our Fine Adjustment Screws section

Still nothing? Try our Custom Section for inspiration and send us your technical requirement and drawings at sales@standa.lt!
