| Specifications |
 |
| X Axis rotation range | | 360°
|
|
|
|
| Z Axis rotation range | | 360°
|
|
|
|
| Adjustable distance between clamps | |
|
|
|
|
| 8-0031(-MEn2) | | 20…340 mm
|
|
|
|
| 8-0032(-MEn2) | | 30...520 mm
|
|
|
|
| Maximum rotation speed | | 2.5 RPM
|
|
|
|
| Maximum load capacity | |
|
|
|
|
| 8-0031(-MEn2) | | 6 kg
|
|
|
|
| 8-0032(-MEn2) | | 10 kg
|
|
|
|
| Aperture | |
|
|
|
|
| 8-0031(-MEn2) | | 420x300 mm
|
|
|
|
| 8-0032(-MEn2) | | 440x480 mm
|
|
|
|
| Base material | | Aluminum
|
|
|
|
| Finish | | Black Anodized
|
|
|
|
| Stepper motors | | 59
|
|
|
|
| Cable | | 1.6 m
|
|
|
|
| Recommended controllers | | 8SMC5-USB |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
 |
|
Description |
|
|
|
|
|
|
|
|
| 8-0031 |
|
|
|

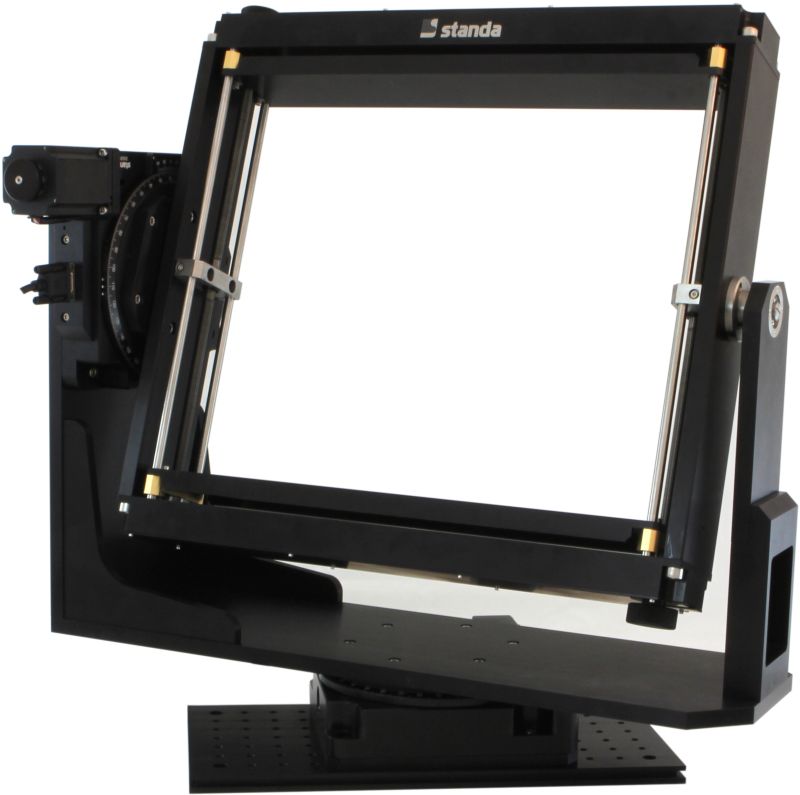

2-Axis Goniometer Stage
driven by stepper motors |
|
|
|
|
|
|
|
| 8-0031-MEn2 |
|
|
|
2-Axis Goniometer Stage
driven by stepper motors with encoders |
|
|
|
|
|
|
|
| 8-0032 |
|
|
|
2-Axis Goniometer Stage
driven by stepper motors |
|
|
|
|
|
|
|
| 8-0032-MEn2 |
|
|
|
2-Axis Goniometer Stage
driven by stepper motors with encoders |
|
|
|
|
|
|
|
|
|
