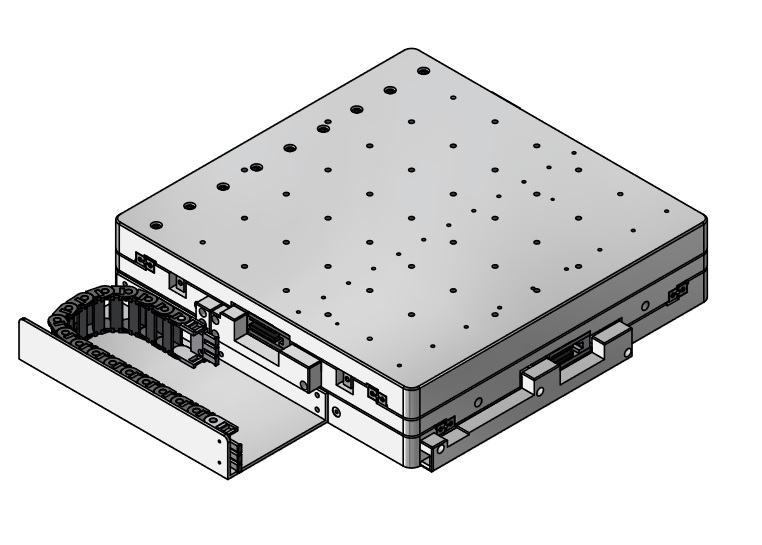

8MTL204XY - Motorized XY Stage
Motorized XY Stage
Zoom in
Printable version
View drawings
Download 3D


Specifications

Model 8MTL204XY-LEn4
Kinematics & Feedback information
 Active Axes XY
 Travel Range, mm 204.00
 Encoder Type Optical
 Encoder Model LEn4
 Encoder Resolution, nm <5.00
 Encoder Interface RS422 or 1Vpp
 Internal Multiplier -
 Multiplication factor 1) up to x65536
 Encoder Grating Period, µm 20
 Reference Mark (Index) Yes
 Absolute Accuracy 2)
  Before Calibration, µm ±5
  After Calibration, µm ±0.50
 Uni-Directional Repeatability, µm ±0.10
 Bi-Directional Repeatability (peak to peak) 2), µm ±0.15
 Bi-Directional Repeatability (RMS) 2), µm ±0.10
 Pitch 3), µrad / arcsec ±39 / ±8
 Yaw 3), µrad / arcsec ±39 / ±8
 Roll, µrad / arcsec ±39 / ±8
 Maximum Velocity (no load, upper axis) 4), mm/s 1000
 Maximum Acceleration (no load, upper axis) 5), mm/s2 10000
 Limits Switches Type (Safety) Hall sensors
 Limit Switch Polarity (Safety) Negative end of run
 Limit Switch Voltage, V 5…24
Load, Guiding & Transmission Information
 Design Type Linear Motor Stage; Planar Design
 Linear Motor Model LM12
 Linear Motor Design Type Ironless BLDC motor
 Maximum Bus Voltage, VDC >320
 Maximum Continues Current, APK 1.6
 Maximum Peak Current, APK 5.5
 Maximum Continues Force, NN 58
 Maximum Peak Forc, NPK 200
 Load Capacity (Centrally Placed) 6), kg 20
 Moving Mass X 7), kg 15
 Moving Mass Y 7), kg 8
 Guiding System Crossed roller bearings with cage drift protection
Material & Environment Conditions
 Housing Material Aluminum Alloy
 Housing Coating (Finish) Black Anodizing
 Environment Pressure Normal Atmosphere
 Operating Temperature, °C 20±2
Control, Communication and Cabling
 Recommended Controllers 8) CMHP/CMNT series
 Recommended Drivers 8) CMHP/CMNT series
 Recommended Power Supply 9) 1 phase wall socket source 220VAC~50Hz
 Recommended Communication Interface 12) EtherCAT
 Cable Length, m -
 Differential Outputs 10) On request
Accessories Information
 Base Plate for Mechanical Interface Not required
 XY Stack Directly
 Z Configuration Not available
(choose from other Standa stages series)
Additional Details
 Dimensions of Moving Platform (W x L), mm 360 x 360
 Stage Dimensions (L x W x H), mm 360 x 360 x 82
 Measurement System Metric/Imperial
 Orthogonality 11), µrad / arcsec 24 / 5
 Protection Level 13) Basic
 RoHS Compliant
 Weight, kg TBD
1) With x4 evaluation; system can be delivered with standard analog SIN/COS encoder interface for personal interpolation.

2) Absolute Accuracy & Bi-Directional Repeatability measurements are processed with Zygo ZMI 501 Michelson laser interferometer.

3) Pitch & Yaw measurements are processed with 11D-ALI-COL electronic autocollimator. Resolution of 11D-ALI-COL: 1 µrad. Environment error: 1 µrad.

4) Maximum Velocity is electrically limited by encoder and driver CUT-OF frequency; maximum velocity is also limited by guiding system.

5) Maximum Acceleration is limited by Drivers` Peak Current, Motors` Peak Current and External Load (inertia). Please contact Standa for support.

6) Load Capacity is limited by position of load and integrated guiding system. Please contact Standa support for loading calculation.

7) Moving Mass is constant parameter of system which characterize m0 or inertia of unloaded system.

8) Recommended controllers & Recommended drivers can be optimized for a certain application. Please contact Standa support for recommendation.

9) Recommended power supply depends on required duty cycle and load. Please contact Standa support for recommendation.

10) Differential Outputs are available in passive (buffered) or active (modulated) way with LCMv2.

11) Stages can be assembled with better orthogonality by request.

12) Scalar Control can be implemented with USB / TCP-IP / RS-232 communication iterface; for vector control we recommend to use EtherCAT.

13) Protection of guiding system is limited and not supposed to be used in wet and dusty enviroment.


Ordering Information
Model Price
8MTL204XY-LEn4
