11D-ALI-COL - Electronic Autocollimator
Electronic Autocollimator
Zoom in
Printable version
Automatic angle deviation display
Relative measurements
Multiple results display
Low light – low reflection capability
Reticulate targets (single or multiple)
Data logging with detailed statistics
Software controlled electronics shutter & gain
Data exporting to another computer via RS232 or TCP/IP
Video with playback, snapshot files

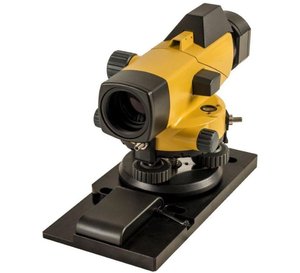

Electronic Autocollimator is a precision USB 2.0 device combining the functionality of autocollimator and alignment telescope - the ideal instrument for optical measurements of minute optical surfaces deviations. It provides a 3-in-1 instrument: electronic autocollimator, focusing telescope and infinite conjugate collimator. The system is capable to measure minute angular displacements of various optical setups.

The system offers portable, compact and accurate beam alignment solution. Our precision electronic autocollimator has built in adjustment features, such as leveling bubble, adjustment pan tilt knobs, enhancing the unprecedented alignment procedure, also with a built-in alignment laser.

Measurements of:
Mirror angle
Straightness of linear stages
Characterization of rotation angle
Wedge, prism and polygon angles
Reflecting surface parallelism
Surface flatness
Alignment of optical setups
Machine alignment
Thermal stability
Vibration analysis


Multiple devices control via USB port is possible. Data streaming via TCP/IP communication protocol or RS232.

System includes:
Electronic Autocollimator unit with USB 2.0 CCD camera, mounted on base with attached power supply, Corner Cube Retroreflector for initial alignment, software on CD.

Minimum software and hardware requirements:
Pentium IV, 2.4 Ghz, 512MB RAM, 10MB HDD, 64MB 24 bit VGA card, 1 x USB 2.0, CD RP<. Win XP/7 (32 bit).

Field of view
Autocollimator 42' (H) (2520 sec of arc)
Telescope 84' (H) (5040 sec of arc)
Resolution 0.1 sec
Accuracy 2.5 sec
CCD Camera 1/2" (1/3" Optional)
Light Source LED
Interface USB 2.0
Clear aperture 36mm
Built in focusing feature
Focusing range 30cm to infinity
Bore sight retention ±5 sec
Objective aperture 36 mm
Built in pan tilt adjustment
Built in coarse aiming telescope
Weight 2.5 kg including cable
