STA-01-OEM - Diode-Pumped Nd:YAG Solid-State Micro Laser
Diode-Pumped Nd:YAG Solid-State Micro Laser
Zoom in
Printable version
View drawings
Download PDF
TEM00 and pulsed spectral structure SLM
Cost effective 1062.5 nm / 1064 nm output wavelength
High output energy and peak power
High repetition rates up to 120 kHz
High beam quality (M2<1.1)
Sub nanosecond pulses (<1 ns)
High reliability and stability
Compact OEM design
Cost effective
More information: 1062 nm, 531 nm

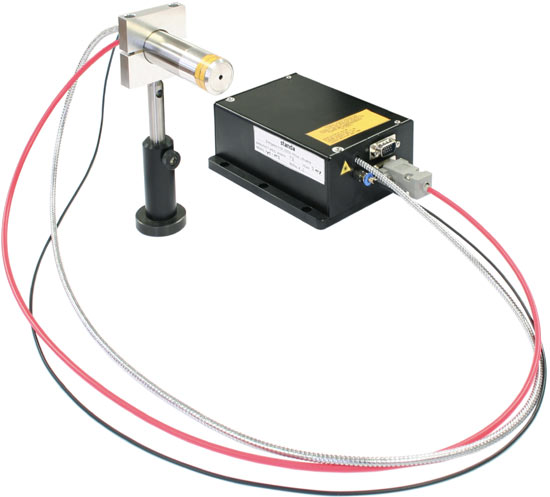

Sub nanosecond (<1 ns) single longitudinal mode passive Q-switched Nd:Yag micro lasers available from Standa are able to provide output peak power up to 200 kW, high pulse repetition rates up to 120 kHz and excellent beam profile M2<1.2. This family of high reliable, solid-state diode pumped lasers consists of a controller unit and a laser head. The controller unit includes a laser diode (LD) driver electronics, fiber pigtailed laser diode, and internal pulse generator. Built-in pulse generator can be replaced by external TTL triggering is a standard feature for all models.

Easy to deploy and use our OEM laser system lets you to concentrate on experiment rather than waste time on the laser. Please check the image below to find the available OEM product ranges. Dots indicate already manufactured OEM lasers.

Models

STA-01-TH

STA-01-FH

Wavelength, nm

355

266

Average output power (max), mW

15

20

Pulse energy, µJ

>1.5

20

Pulse duration, ns

<0.5

<0.5

Repetition rate (max), Hz*

10000

0.1-1000

Beam Profile

M2 < 1.2

Pulse spectral structure

single longitudinal mode

Polarization ratio

> 100:1

Beam Waist diameter
inside the laser head 1/e2, µm**

25-200

Pulse spectrum FWHM, pm

< 5 (near transform limited)

Pulse to pulse energy stability RMS

< 0.6

Power stability over six hours***

< ± 1,5%

External power supply voltage, V AC

100-240

Operation temperature, °C

22±11, non-condensing

Interfaces

USB, External trigger (TTL rising edge) 1Hz...max repetition rate

Laser head dimensions:

  diameter, mm

30

  length, mm

120

Warranty
12 months or 5000 hours whichever occurs first
*Selected operational frequency is set by manufacturer.
**Waist position depends on model.
***After 5 to 10 minutes warm-up and temperature variation of of <±3°C and <3°C/hour
1 - Is specified an ambient temperature at which the laser parameters exactly meet the specifications in the table.

OEM Manufacturing services. Standa provides contract manufacturing services for application - specific Lasers. Please call your local Standa distributors or Standa office for more information.



Ordering Information
Model Oredering Information
STA-01-FH Fourth harmonics
STA-01-OEM Please indicate required parameters of the OEM laser in your request
STA-01-TH Third harmonics
